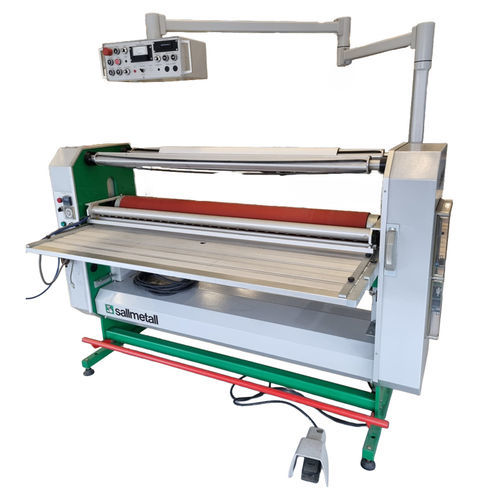

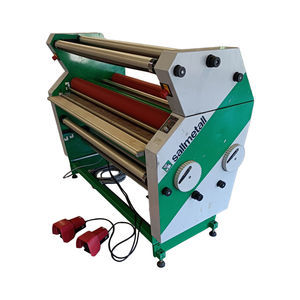

Hot laminating machine S-1400

coldair bubble freelarge nip

Product
S-1400
Brand: Sallmetall
Year of construction: 1989

Overview
Refurbished Sallmetall S-1400 roll laminator with a heated top roller, cold bottom roller, ionising bars and a line pressure up to 8 N/mm. Fully overhauled and serviced; both rollers fitted with new rubber.

Key features

• Heated top roller
• Cold bottom roller
• Infeed table with aluminium profiles
• Wooden outfeed table
• Ionising bars with compressed air, automatic on/off via sensor or manual
• High line pressure up to 8 N/mm
• Unwinder with wrinkle correction (electric), top rear
• Rewinder (electric), top front
• 2 winding shafts
• Electric height adjustment
• Control panel on swivel arm
• Emergency-stop bar at the front
• Foot pedal for start/stop
• Nip height approx. 80 mm
• Speed adjustable 0-8 m/min

Price and condition
Budget Price: € 9.500,- (price includes complete maintenance and overhaul of the machine and new rubber on both rollers). Transport and installation are excluded. Changes to equipment or specifications will affect the price.

Typical use
The S-1400 is a hot and cold roll laminator used for professional laminating and mounting of flexible media. Ionising bars neutralise static charge to produce clean, dust-free results.

Refurbishment details
This S-1400 has been completely maintained and overhauled; both rollers fitted with new rubber and the machine fully tested before delivery.

Unwind/rewind and roll handling
The machine features an electric unwinder with wrinkle correction (top rear), an electric rewinder (top front) and two winding shafts to enable smooth roll-to-roll processing.

Ionising bars
Ionising bars neutralise static electricity on the material using compressed air. They can switch on/off automatically via a sensor or be operated manually to prevent dust attraction and sticking problems during lamination.

Characteristics / technical specifications

• Model: S-1400
• Brand: Sallmetall
• Year of construction: 1989
• Heated top roller
• Cold bottom roller
• Infeed table with aluminium profiles
• Wooden outfeed table
• Ionising bars with compressed air, automatic/manual operation
• Line pressure: up to 8 N/mm
• Nip height: approx. 80 mm
• Speed: adjustable 0-8 m/min
• Unwinder: electric with wrinkle correction (top rear)
• Rewinder: electric (top front)
• Winding shafts: 2
• Electric height adjustment
• Control panel on swivel arm
• Emergency-stop bar at the front
• Foot pedal for start/stop
• Condition: refurbished, complete maintenance and overhaul, new rubber on both rollers
• Price note: Budget Price € 9.500,- (transport and installation excluded; changes to equipment/specifications affect price)
