Wind turbine alternator
three-phase6-poleIP54

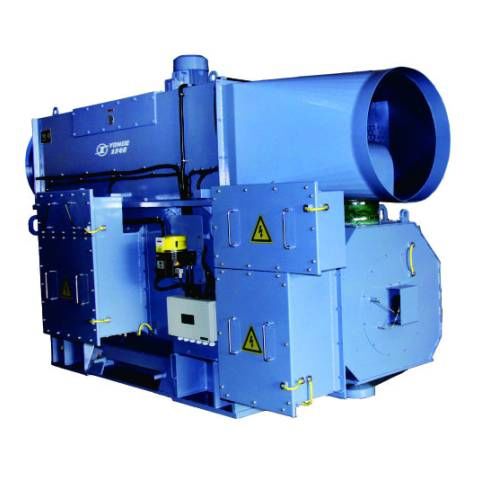

Wind turbine alternator - CRRC YONGJI ELECTRIC CO. LTD. - three-phase / 6-pole / IP54
Wind turbine alternator - CRRC YONGJI ELECTRIC CO. LTD. - three-phase / 6-pole / IP54
Add to favorites
Compare this product


Characteristics

Phase
three-phase
Number of poles
6-pole
Protection class
IP54, IP23
Product applications
for wind turbine
Cooling system
air cooled, liquid-cooled
Power in kVA

2,150 kW
(2,923.19 hp)

Voltage

690 V

Supply frequency

50 Hz

Description

The rotational speed of it ranges from 620r/min to 1380r/min. the product adopts special ventilation cooling structure, and its actual running temperature rise is less than 60K; Its stator and rotor windings adopt Class-H corona-resistant insulation structure and vacuum pressure impregnation, and have strong capability of adopting environment. The rotor is under dynamic balance in the whole speed range, and precision grade is G1.0. The vibration and noise limit of the entire machine is significantly lower than national standard. Applicable environment: Inland, plateau (elevation ≤4000m) and low wind-speed conditions, etc.
