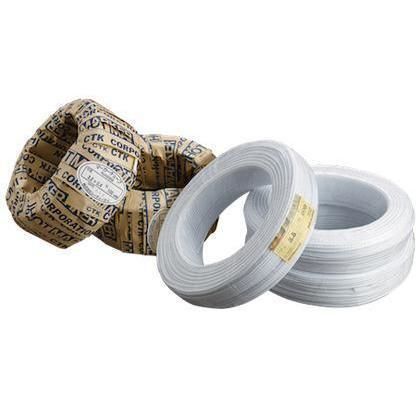

Tubular PVC

weatherproof

Overview
PVC tubes for wire and cable identification. Designed for clear thermal or hot-stamp printing and resistant to weathering for long-term marking in industrial environments.

Line up

• PVC Tubes (multiple sizes and colours)

Key features

• Clear, crisp printing compatible with thermal and hot-stamp methods
• Weather-resistant PVC for durable outdoor and indoor marking
• Optimised for wiring and cable identification

Specifications
Tube I.D. (mm) | Applicable wire size (mm²) | Length (m/roll)
2.0 | 0.50 | 200
2.5 | 0.75 | 200
3.0 | 0.90 | 200
3.2 | 1.25 | 200
3.5 | 1.25 | 200
3.6 | 2.00 | 200
4.0 | 2.00 | 200
4.2 | 1.25 | 200
4.5 | 1.25 | 200
5.0 | 1.25 | 200
5.5 | 5.50 | 200
6.0 | 5.50 | 200
7.0 | 8.00 | 200
8.0 | 14.0 | 100
9.0 | 14.0 | 100
9.5 | 22.0 | 100
10.0 | 22.0 | 100
11.0 | 30.0 | 100
12.0 | 38.0 | 100
13.0 | 50.0 | 100

Other available options
Other colours and sizes available on request.

Technical specifications

• Tube I.D. range: 2.0 mm to 13.0 mm
• Applicable wire sizes: 0.50 mm² to 50.0 mm² depending on tube I.D.
• Standard roll lengths: 200 m/roll for sizes up to 7.0 mm I.D.; 100 m/roll for 8.0 mm and larger
• Material: PVC
• Intended use: wire and cable marking/identification; suitable for clear thermal or hot-stamp printing; weather resistant
