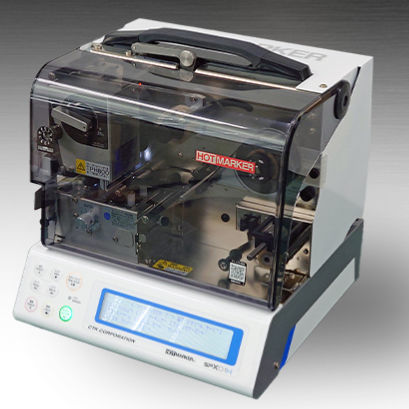

Thermal transfer printer SPX01 series

Product overview
The SPX01 series is a thermal transfer printer using a thermal head to produce durable markings. It delivers high productivity through fast, continuous data-driven printing. Two models are available: SPX01S (standard) and SPX01H (high-spec). SPX01H accepts an optional lining unit for automatic alignment; both models can be fitted with an optional USB port. Indicator lamps are available as a custom option.

Key features

• New software supports multiple functions with intuitive operation
• Hardware improvements enable smooth insertion and setting of workpieces to be printed
• Extensive options: USB memory (store/write print data), lining unit (automatically aligns printed/cut mark tubes on dedicated tape), etc.
• Improved print quality with approximately 10% increase in printing speed
• Optional functions are modular to help control the base product price
• Stand-alone operation possible via the supplied keyboard

Video / display
The product page includes videos demonstrating actual printing and the software functions.

Basic specifications
Model: SPX01S (standard) / SPX01H (high-spec)
Dimensions: (W) 315 mm × (D) 280 mm × (H) 330 mm
Weight: 11.5 kg
Display: LCD with white backlight (40 characters × 4 lines)
Compatible OS: Windows 10, Windows 11
Printable media: PVC tubes, heat-shrink tubes, labels, PVC plates, etc.
Print size (PVC tube): SPX01S outer diameter φ2.0–22.0 mm / SPX01H outer diameter φ2.0–28.0 mm
Print size (heat-shrink tube folded width): SPX01S max 35.0 mm / SPX01H max 45.0 mm
Production capacity (tube mode): SPX01S approx. 5,300 pcs/hour / SPX01H approx. 4,900 pcs/hour
Options: SPX01S examples: USB memory; SPX01H: lining unit, USB memory, and other accessories

Applications
Used for wiring identification on distribution and control panels, harness and control cable identification in automobiles and motorcycles, and identification tasks across production plants.

Features / Technical summary

• Models: SPX01S, SPX01H (select according to application and options)
• Dimensions: W315 × D280 × H330 mm
• Weight: 11.5 kg
• Display: LCD with white backlight (40×4)
• Compatible OS: Windows 10 / Windows 11
• Printable media: PVC tubes, heat-shrink tubes, labels, PVC plates, etc.
• PVC tube compatible outer diameter: SPX01S φ2.0–22.0 mm, SPX01H φ2.0–28.0 mm
• Heat-shrink tube folded width: SPX01S max 35.0 mm, SPX01H max 45.0 mm
• Production capacity (tube mode): SPX01S approx. 5,300 pcs/h, SPX01H approx. 4,900 pcs/h
• Main options: USB memory, lining unit (for SPX01H), other accessories
• Operation: Stand-alone operation possible using the supplied keyboard
