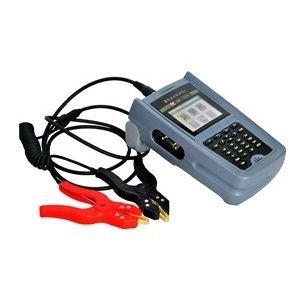

Battery tester ISBA-5220A

voltageresistancetemperature

ISBA-5220A is a battery resistance analyzer with multiple functions. It supports domestic and international standards and tests various battery type such as 2V, 4V, 6V, 8V, 12V, 24V and 48V. The analyzer contain test resistance of conductor and metal connector, and resistance measurement resolution reaches 1μΩ. ISBA-5220A adapts VLSI and powerful microprocessor, and can exchange data with RS232 and TCP/IP Ethernet port. Meanwhile, it adapts with large screen colorful LCD, and provides powerful background data management software to analysis, display and report test data. It’s an indispensable tool for network operators, power department,operations etc. The key features： Test a variety of battery and conductor resistance, including dry battery, Li-ion battery and special battery Various types of battery testing, including 2V, 4V, 6V, 8V, 12V, 24V, 48V, voltage testing range 0-60V Various test modes, single testing and auto real-time testing Keyboard operation, 3.5" TFT LCD color with backlight, and support multilingual display Built-in chargeable Li-ion battery, more than 5 hours operation time Large data storage capacity, more than 100,000 records Functional specifications Storage battery resistance testing: automatically switch within the test range 1μΩ--400Ω, and resistance measurement resolution reaches 1μΩ The analyzer able to test resistance of conductor and any metal connector of battery, resolution reaches 1μΩ Battery voltage testing can test all kind battery voltage under 48V, battery voltage can be tested automatically during resistance measurement.
