Cutter 15KV

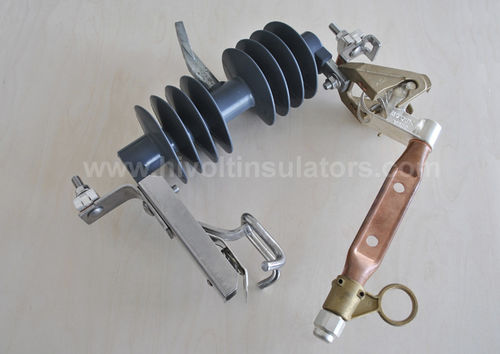

We supply high quality silicone rubber fuse cutout for distribution lines , the product level are from 11 kV up to 36kV with current level 100A ,200A and 300A . The very high mechanical performance and excellent electrical character will build more reliable power lines. below is the information of above photo: product name :15KV silicone rubber dropout fuse cutout grey with solid copper fuse tube 300A Rated Voltage: 15 kV Rated Current : 300A Breaking Capacity : 8kA (Symmetrical current interruption) Power Frequency withstand voltage (dry) : 45kV Impulse Voltage : 110 kV Leakage distance : 240mm Connector type : paralell groove connector silver coated More detailed information shown below: product name :15KV silicone rubber dropout fuse cutout grey with solid copper fuse tube 300A To be sure all batches of 15kV dropout fuse cutout are qualified , we conduct below performance tests : 1) Power frequency dry withstand voltage test 2) Lightning impulse withtand voltage test 3) Power frequency wet withstand voltage test 4) Temperature rise limitations test 5) Radio influence levels test Applications: Used for distribution lines or substations up to 15kV , suitable for wooden or steel cross arm Competitive Advantage: We guarantee that all fuse cutout units are routine tested one by one according to IEEE C37.41 , IEEE37.42 before shipment . In this way , we can guarantee all product are qualified . All related metal parts or insulation body are selected . To offer high quality product is our goal . We also advanced our design to save cost , that we can offer better price for end users.
