roller pulley / flat belt / bearing
BP-R series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

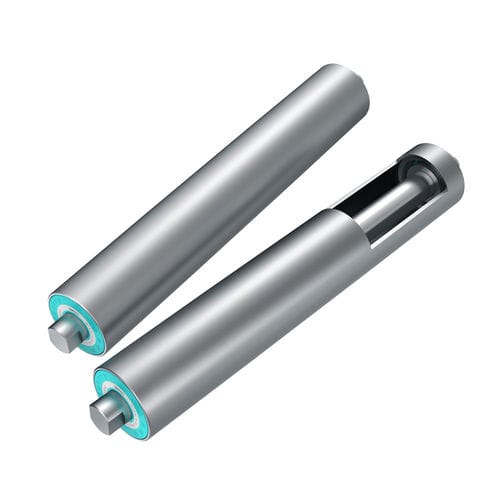

roller pulley / flat belt / bearing roller pulley / flat belt / bearing - BP-R series
{{requestButtons}}

Characteristics

  • Type:

    roller

  • Applications:

    flat belt

  • Other characteristics:

    bearing

Description

1.Fitted with precision bearings
2.Precision machining, smooth rotation
3.High load capacity, reliable and
① Driven Pulley:
Main driving component for centre drive belt conveyors:
Select BP-D series pulley (rotating shaft).

② Head & Tail Pulley:
Installed at each end of a belt conveyor according to the different drive type and structure:

a、Centre drive:
Change the belt direction: Select BP-R series pulley (fixed shaft) or DP-D series pulley
(rotating shaft)
b、Head or Tail drive:
Drive Pulley: Select BP-D series pulley (rotating shaft)

Idler Pulley: Select BP-R series pulley (fixed shaft) or BP-D series pulley (rotating shaft).

③ Snub Pulley:
Used to increase the belt wrap angle for the driven pulley, tension and tracking the belt.
Select BP-R series pulley (fixed shaft) or 1200 series conveyor roller (anti-static).

④ Carrying Roller:
Used to support the belt, simplify structure and reduce friction:
Select 1200 series conveyor roller (anti-static)durable
