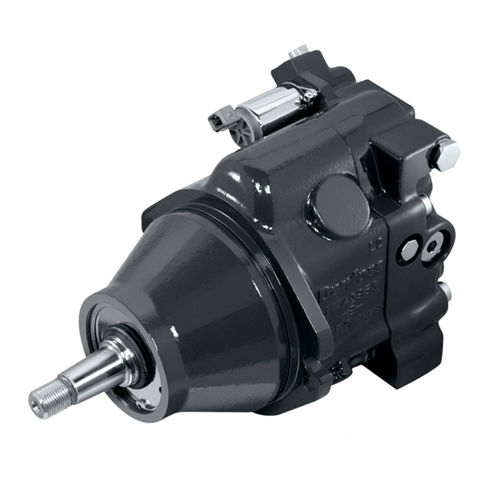

Piston hydraulic motor RDM
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Pressure
Min.: 1 bar
(15 psi)Max.: 6 bar
(87 psi)- Rotational speed
3,900 rpm, 4,000 rpm, 4,150 rpm, 4,300 rpm
(24,504.42 rad.min-1, 25,132.74 rad.min-1, 26,075.22 rad.min-1, 27,017.7 rad.min-1)- Torque
0.4 Nm, 0.48 Nm, 0.56 Nm, 0.6 Nm, 0.72 Nm
(0.3 ft.lb, 0.35 ft.lb, 0.41 ft.lb, 0.44 ft.lb, 0.53 ft.lb)- Displacement
25 cm³, 30 cm³, 38 cm³, 45 cm³
(0.85 US fl oz, 1.01 US fl oz, 1.28 US fl oz, 1.52 US fl oz)
Description
The Reverse Displacement Motor (RDM) is designed
for use in mobile open circuit applications. It offers
reverse functionality without external valves, and
provides system robustness with available anticavitation
and shock valves. The RDM uses the
existing and proven technology of the Danfoss L/K
motor. These motors have been optimized with
regard to options, life, package size and installed cost.
The RDM is a two-position reversing motor, with
smooth, shift-on-the-go capability. The integrated
proportional shifting valve uses system pressure. It
allows reversing functionality without external valves
and external pressure supply
