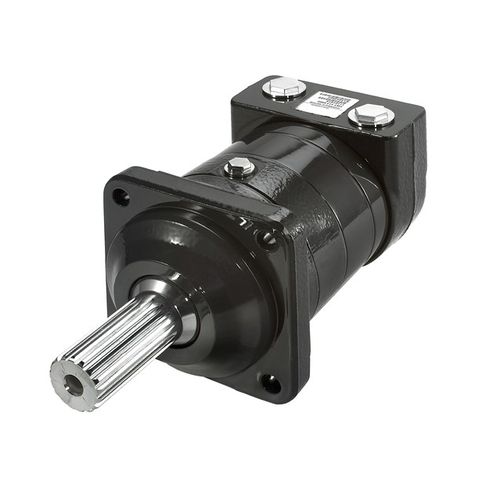

Gear hydraulic motor TMT
orbitalcompact

gear hydraulic motor
gear hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
gear, orbital
Other characteristics
compact
Pressure

350 bar
(5,076 psi)

Rotational speed

Max.: 600 rpm
(3,769.91 rad.min-1)

Min.: 240 rpm
(1,507.96 rad.min-1)

Torque

Max.: 2,420 Nm
(1,784.9 ft.lb)

Min.: 1,660 Nm
(1,224.35 ft.lb)

Displacement

Max.: 630 cm³
(21.3 US fl oz)

Min.: 250 cm³
(8.45 US fl oz)

Description

With pressure capability up to 350 bar [5,080 psi] and high starting torque, the T-series is the energy-efficient choice for the toughest working environments. Leading performance with a long lifetime makes light work of the heaviest duties. Up against high pressures, thin oil or frequent reversals, our motors are guaranteed to perform smoothly and efficiently - even at low speed. T-series characteristics Motors with speed sensor Ultra short motors Motors with integrated brake Motors with integrated flushing valve Special dust seal ring for additional shaft seal protection Features and benefits High bearing capacity and robust cardan shaft design for longer life Outstanding motor efficiency for reduced fuel consumption Low leakage, securing energy savings Short motors without bearings for compact integration in gear boxes and other flexible design options Integrated flushing valve for continuous oil renewal and cooling in a closed circuit Special mounting flange on wheel motors for optimal utilization of bearing capacity Application opportunities Our large orbital motors are an excellent choice for the propel and work functions on many applications – including skid steer loaders, trench compactors, forestry harvester heads, and beet harvesters.
