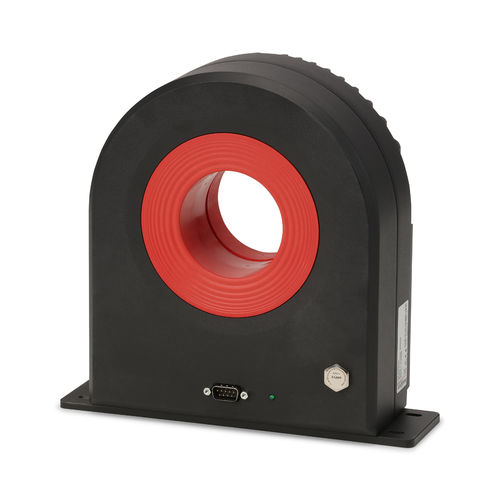

Fluxgate current transducer DL2000ID-CB100

fixedDCAC

• 1500:1 primary/secondary current ratio • Current output through D-sub-9 connector • 068 mm aperture • 7 ppm total accuracy • 1 ppm linearity • 6 ppm offset • Status signal and LED • Option for additional calibration windings High precision DC current transducer (DCCT) measuring up to 3000 A currents and continuously measuring 3000 A currents with a linearity error less than 1 ppm. Based on the ultra stable Danisense closed loop flux gate technology, the DL2000ID has very low offset and ultra low drift. It provides high resolution for precise monitoring, reliable and consistent performance, and a rugged design for durability. For calibration of currents up to ±50 A the DL2000ID-CB100 and DL2000ID-CD100 versions are available with additional calibration windings with 100 turns. Applications • Electric vehicle (EV) test bench • Power measurement and power analysis • Particles accelerators • MRI devices and medical scanners • Batteriy testing and evaluation systems • Current calibration purposes • Stable power supplies • Precision current sensing
