Industrial motherboard DMB-AQ270
ATXIntel® Celeron®Intel® Core i3

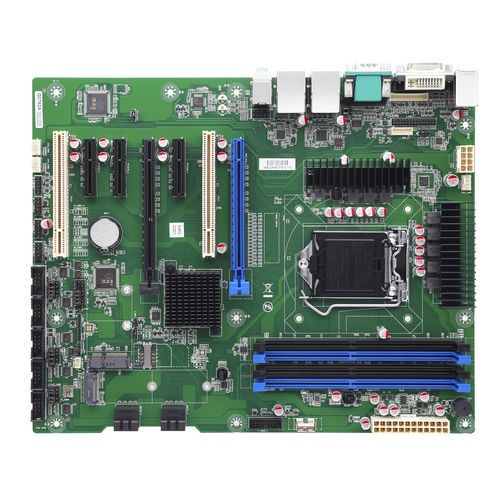

Industrial motherboard - DMB-AQ270 - Darveen Co., Ltd. - ATX / Intel® Celeron® / Intel® Core i3
Industrial motherboard - DMB-AQ270 - Darveen Co., Ltd. - ATX / Intel® Celeron® / Intel® Core i3
Industrial motherboard - DMB-AQ270 - Darveen Co., Ltd. - ATX / Intel® Celeron® / Intel® Core i3 - image - 2
Add to favorites
Compare this product

Characteristics

Format
ATX
Processor
Intel® Celeron®, Intel® Pentium, Intel® Atom, Intel® Core i5, Intel® Core i3, Intel® Core i7, 8th Generation Intel® Core™, 9th Generation Intel® Core™, Intel® Core™ i9, 6th generation Intel® Core™
Chipset
Intel® Q270
Memory
DDR4 UDIMM
Extension slot
SATA, M.2, PCI Express, SIM card, Mini PCI Express
Socket
Intel LGA 1151
Applications
industrial, embedded, network, server, workstation, POS, for automation, for medical equipment, for desktop computers, for autonomous mobile robot, for AGV
Operating system
Windows 10, Linux, Windows 7, Windows 8.1
Memory frequency
DDR4 2400 MHz, DDR4 2133 MHz
Connectivity
gigabit Ethernet, WiFi, USB, USB 2.0, USB 3.0, HDMI, RS-485, PS2, DVI-D, VGA, RJ45, RS-422, eDP, Ethernet, DisplayPort

Description

CPU - Support MAX CPU TDP: Octa-Core 95W Audio - Realtek Audio HDA Codec, 1× Front Audio Header (Line-Out + MIC) 1× Line-out + Line-in + MIC 3.5mm Jack Other Ports - 8× GPIO 1× PS/2 Connector(Keyboard & Mouse) 1× Front Panel Header (HDD LED+PWR LED+PWR-ON+RESET) 1× Port80 Debug Header 1× SMBUS Header 2× System FAN Header 1× CPu FAN Header 1× Case Open Header 1× CMos Clear Jumper 1× AT or ATX Select Jumper TPM - SLB 9670VQ2.0,TPM2.0 (not onboard by default), Support Intel PTT Default Temperature - Storage: -20~75°C Operating: 0~60°C BIOS - AMI UEFI BIOS (Support Watchdog Timer) Power Supply - ATX Standard (24P + 8P) 1× ATX 8P CPU Power Input Connector 1× ATX 24P Power Input Connector
