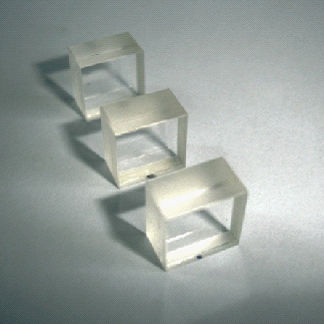

Quartz depolarizer DPL series

lyotoptical

Optical depolarizer is a kind of optical passive component which can transform the input polarized or partial polarized light into non-polarization light(depolarization),it is designed according to Lyot depolarizer principle. Dayoptics Lyot depolarizer consists of two crystalline plane parallel plates whose axes is 45° apart from each other with optical contacted.The thickness ratio of two plates length is typically 2:1.The depolarizer is not suitable for usage in monochromatic light. Material Calcite,YVO4,Quartz Dimension Tolerance +0/-0.2mm Parallelism <20 arc second Flatness λ/4@633nm Surface Quality 20/10 Scratch/Dig Surface Contact Method Optical Contact or Cemented Total Length 6mm
