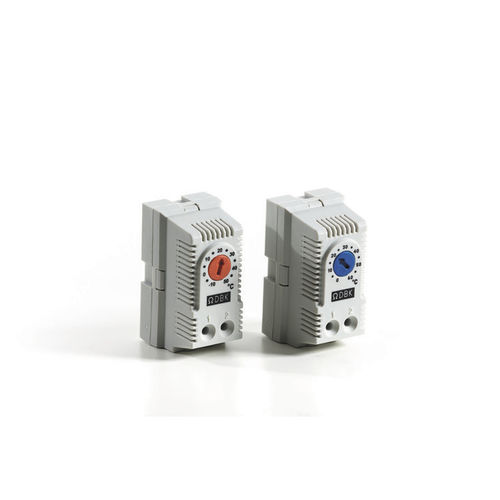

Adjustable thermostat FGT series
compact

adjustable thermostat
adjustable thermostat
adjustable thermostat
Add to favorites
Compare this product


Characteristics

Type
adjustable
Other characteristics
compact
Temperature

Min.: -10 °C (14 °F)

Max.: 60 °C (140 °F)

Switching power : current

Min.: 2.5 A

Max.: 16 A

Switching power : voltage

Min.: 12 V

Max.: 230 V

Description

Thermostat T-Series Thermostat for controlling heating or cooling systems with adjustable switching temperature Available as opener (heating) or closer (cooling) Voltage 12 - 24V, 115 - 230V Worldwide approvals: CE, UL, CSA Thermostat T-Series Thermostats of the T-series are available in two version, normally closed or normally open. They feature an adjustable switching temperature and a DIN Clip for easy installation in enclosures. FEATURES Wide temperature range Can be operated at 12 - 24V DC, 115 - 230V AC Adjustable temperature control Versions differentiated by button color Compact, lightweight design Easy installation with DIN clip (EN50022)
