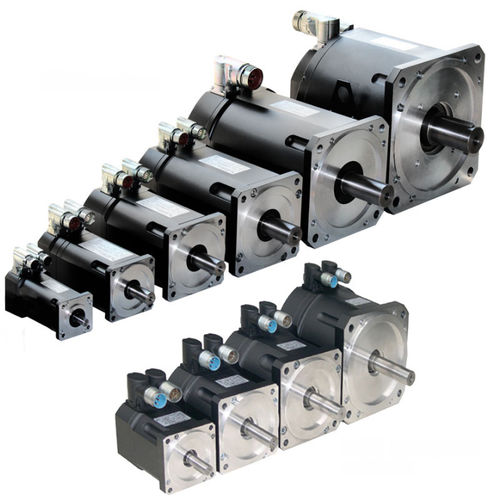

DC servomotor DSM series
brushlesspermanent magnetcompact

DC servomotor
DC servomotor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
brushless
Configuration
permanent magnet, compact
Torque

Min.: 0.7 Nm (0.5163 ft.lb)

Max.: 230 Nm (169.6393 ft.lb)

Description

PERMANENT-MAGNET BRUSHLESS AXES SERVOMOTORS, DSM-SERIES DSM brushless servomotors are designed to offer an advanced solution as a result of an consistent project developed for chip-removal machine tools, where high motion control control bandwidth is needed. Together with the full-digital control of D.Electron Z-Star2 servodrive system, DSM servomotors fulfill high requirements of dynamic, precision and smoothness. DSM servomotors reach the lowest level of torque ripple available on the market, and together with their high inertia, allow direct coupling of the motor, overcoming mechanical transmission limits. Fields of application: Metal working machine tools (milling-turning) Robots Machine tools for wood, glass, marble Cutting machines, Laser, Plasma, Waterjet, Oxi fuel Auxiliary axes Main characteristics:DSM servomotors series Rare earth elements magnets for high temperature 8 poles Sinusoidal Back E.M.F Integrated thermal probe KTY84-130 Orientable connectors Compact sizes Low torque ripple High RPM
