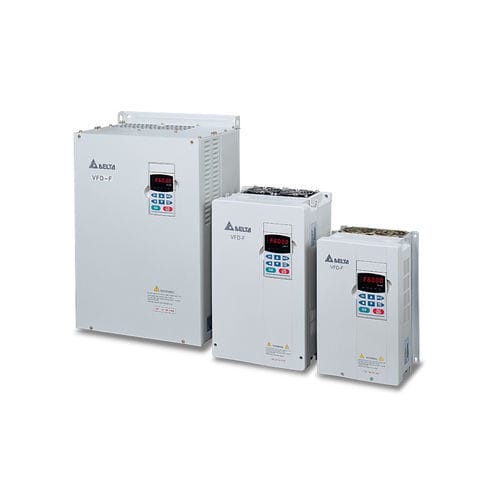

Digital AC drive VFD-F

Modbusverticalfor pump

Variable Torque AC Drive. Specifically designed for medium and high horsepower fan and pump applications. The F series offers an adjustable V/F curve and automatic voltage regulation. It also offers the capability of connecting and running consecutively four motors. A set of motors consisting of 1 variable-speed motor and 3 constant-speed motors is allowable. Applications Air conditioner for large buildings; wastewater treatment system; water supply system for large buildings; public water supply system, etc. Specifications Output frequency 0.1~120 Hz Adjustable V/f curve 16-step speed control and 15-step preset speed process control Built-in PID feedback control Time/fix amount circulation control Built-in MODBUS communication, baud rate up to 38400 bps Support communication module (DN-02, LN-01, PD-01)
