Hydraulic press brake TBB series

CNCprecision

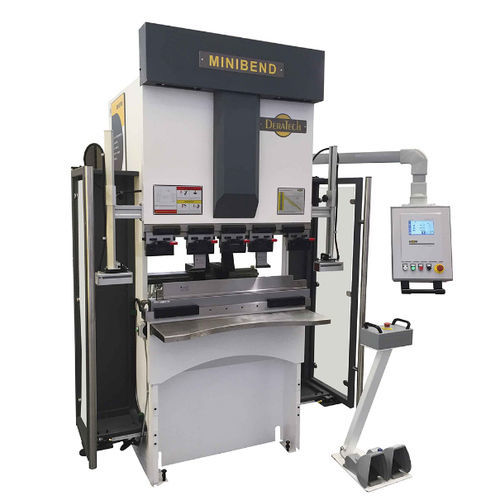

The Ultima Minibend is a good example of efficient interaction between operator and machine. By proving the best working conditions to the operator and creating a user friendly environment, will result in outstanding productivity at every stage of the job. The Ultima Minibend is ergonomical designed: movable footpedal, pivoting control panel, seated or semi-seated operation... The machine frame can be designed to the ergonomic needs of the operator, this to achieve the best possible working conditions in any application possible. The Ultima Minibend is a single cylinder hydraulic pressbrake, especially designed torsionally stiff welded machine frame, upper beam guided by high precision linear guides for the production of small parts in the productive way possible. Available in bending length of 1020mm and bending force of 30ton. Back gauge X/R is CNC-controlled and manual finger adjustment. The Ultima Minibend is engineered to produce parts common found in the production of electrical equipment, medical instruments, vending machines,... this is a fast and cost effectively way. DETAILED SPECIFICATIONS Technical information Can be used sitting or standing Available with E-drive or Hybrid system Touch Screen cnc-controller ESA 650 Correction database Extremely fast working, due to high fall-down and bending speed Remote assistance Available options D-Alpha: Automatic angle measurement system D-STM: Automatic sheet thickness measuring Bendingaid(s) CNC-controlled Automatic hydraulic hemming Servo controlled moving table X3 6 axis backgauge: X1X2 / R1R2 / Z1Z2 Backgauge with pneumatic support system Barcode Scanner 3D controller Hybrid hydraulic system
