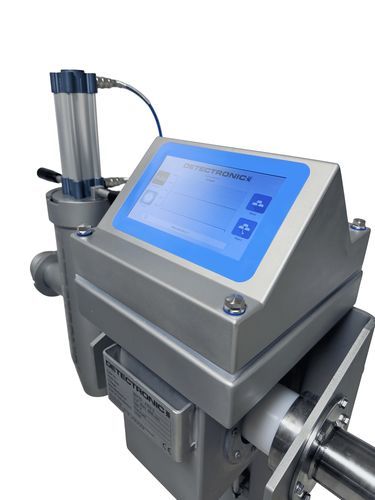

Liquid metal detector 607TD-140

high-sensitivitycompactfor pipelines

The Detectronic Pipeline Metal Detector is a high-precision device designed specifically for metal detection in pumped and flowing food products. Manufactured in Denmark by Detectronic A/S, this model features a hygienic inline design with 2.5-inch sanitary connections, making it suitable for a variety of applications including minced meat, emulsions, sauces, dairy products, and other viscous or liquid food products.

Constructed from stainless steel AISI 304, the metal detector complies with stringent food industry hygiene standards. It offers robust protection with an IP68/IP69K rating, ensuring durability and reliability in washdown environments. The system operates at frequencies of 30 and 300 kHz, providing excellent sensitivity with detection capabilities down to 0.5 mm for both ferrous and stainless steel contaminants.

User interaction is facilitated through a 7-inch color touchscreen interface, offering menu options such as 'AUTO' and 'Default' for ease of operation. The device includes a USB port for exporting reports and data, and features a 4-level password-protected user access system to maintain security and control over settings.

The metal detector unit is mounted on a mobile stand equipped with four caster wheels featuring locking mechanisms, allowing for easy positioning and stability during operation.

With a compact inline installation footprint measuring 800 mm in length, 600 mm in width, and up to 1400 mm in height, and weighing approximately 120 kg, this system is designed for stable performance in high product effect applications. A more cost-effective keyboard version is also available upon request.

This metal detector is CE marked and represents a reliable solution for ensuring product safety and quality in the food processing industry.
