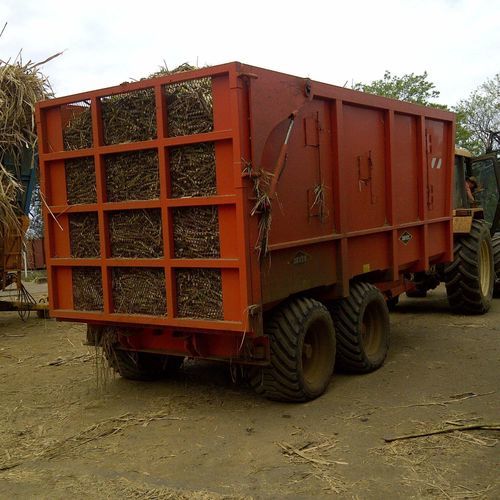

Dump trailer CS 140

for bulk materials2-axlewith hydraulic braking

Technical Information - Internal box dimensions: 5.40 m x 2.32 m x 0.60 m + Short or long cane extensions - Axle: Lowered bogie 90 10 Axles - Track 2000 - Brake: 406 x 120 - Wheels: 550/45 X 22.5 - Rear door: Double doors - Braking: Hydraulic + Parking - Finish: Anticorrosion Ester epoxy primer + Polyurethane finish lacquer + Oven - Registration: Barré Rouge (Registration Certificate) + CE Certificate Equipment - Hydraulic tipping - Lowered monocoque box - Rear door with 2 leaves - Spring drawbar - Special sugar cane extensions - Parking brake + hydraulic - Mechanical jack - Lighting Options - Privilege finish - Powershift hydraulic assistance - Hydraulic stand - Tipping by compressor - Hydraulic door - Wide wheels Technical Specifications - Payload: 14 T - Unladen weight: 4700 kg - Internal box dimensions: 5.40 m x 2.32 m x 0.60 m + Short or long cane extensions - Lowered bogie axle, 90 10 axles, track 2000 - Brakes: 406 x 120 - Wheels: 550/45 X 22.5 - Double rear doors - Hydraulic and parking brakes - Anticorrosion Ester epoxy primer, polyurethane finish lacquer, oven-cured - Registration: Barré Rouge (Registration Certificate) + CE Certificate
