Handling shelving Rollrack
cantileverdynamicfixed

Handling shelving - Rollrack - DEXION - cantilever / dynamic / fixed
Handling shelving - Rollrack - DEXION - cantilever / dynamic / fixed
Handling shelving - Rollrack - DEXION - cantilever / dynamic / fixed - image - 2
Handling shelving - Rollrack - DEXION - cantilever / dynamic / fixed - image - 3
Handling shelving - Rollrack - DEXION - cantilever / dynamic / fixed - image - 4
Handling shelving - Rollrack - DEXION - cantilever / dynamic / fixed - image - 5
Add to favorites
Compare this product

Characteristics

Application domain
handling
Type
cantilever
Inventory management
dynamic
Configuration
fixed
Capacity
for heavy loads, for long items
Capacity

Min.: 1,500 kg
(3,306.9 lb)

Max.: 90,000 kg
(198,416 lb)

Depth

2,350 mm, 3,500 mm, 4,650 mm
(92.52 in, 137.8 in, 183.07 in)

Description

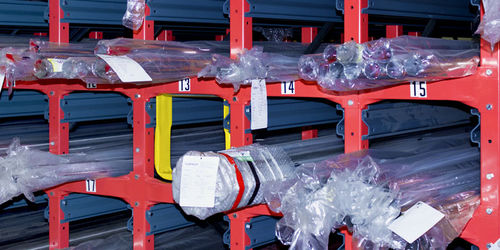

Rollrack Long Product Storage is your only true solution for storing certain long goods. Want a rational and economical cantilever alternative? Rollrack provides a 'honeycomb' of vertical dividing beams, giving you easy access to a pigeon-hole bay. The Rollrack is the rational alternative to traditional cantilever solutions. It's an advantageous system since goods are loaded and unloaded from the short side – the front – consequently creating less demand in the handling area. Above each pigeon hole: a set of longitudinal fixed rails, each with a set of ball-bearing rollers. As the goods are fed into the rack, the cradle facilitates movement, allowing for easy insertion of long items into the Rollrack such as profiles, piping and mouldings. Product specifications The rack has four different sizes of modules to fulfil demand for various goods

Catalogs
