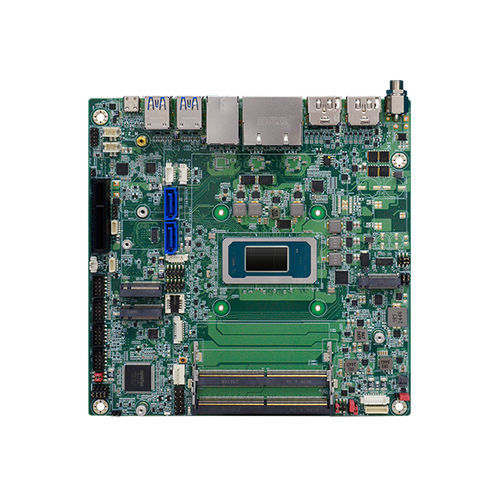

Mini-ITX motherboard PTH171/PTH173embeddedIntel® Core™ UltraIntel®
Add to favorites
Compare this product
Characteristics
- Format
- mini-ITX, embedded
- Processor
- Intel® Core™ Ultra
- Chipset
- Intel®
- Memory
- DDR5 SDRAM
- Extension slot
- M.2 Key M, M.2 Key E, M.2 Key B, M.2 Key A, SATA3, PCI Express, SIM card
- Applications
- industrial, embedded
- Connectivity
- USB 2.0, LVDS, WiFi, 2.5 GbE, USB 3.2, USB Type-C, HDMI, VGA, eDP, RJ45, RS-232, DVI-D, DisplayPort
Description
The PTH171/PTH173 are Mini-ITX industrial motherboards from DFI supporting next-generation Intel® Core Ultra processors with a TDP up to 25W, optimized for embedded, edge and industrial applications that require multiple displays, rich I/O and flexible expansion.
Key highlights
Technical specifications
Key highlights
- Form factor: Mini-ITX.
- CPU: Next-generation Intel® Core Ultra (TDP up to 25W).
- Memory: 2 x DDR5 6400/7200 MHz, up to 128 GB.
- Quad independent display: 1 x DP++, 1 x HDMI 2.0, 1 x USB Type-C, 1 x M.2 A (M2A-Display extension port) supporting eDP/LVDS/HDMI/DVI/VGA/DP.
- Multiple expansion: 1 x PCIe Gen5 x4, 1 x M.2 M key (NVMe), 1 x M.2 B key (for 4G/5G) with SIM slot, 1 x M.2 E key (WiFi/BT), 1 x M.2 A key (M2A-Display & USB expansion).
- Rich I/O: Up to 3 x Intel 2.5GbE, 2 x COM, 4 x USB 3.2 Gen2 Type-A, 1 x USB Type-C (DP alt / USB3 Gen2 / PD 15W), 5 x USB 2.0 headers, 2 x SATA 3.0, Audio L/R with 3W speaker support.
- Out-of-band management: Supports EXT-OOB (Full); optional internal RJ45, CNVi, Intel vPro where applicable.
- Status: Preliminary.
Technical specifications
- Model family: PTH171 / PTH173.
- Form factor: Mini-ITX.
- Processor support: Next-generation Intel® Core Ultra processors (TDP up to 25W).
- Memory: 2 x DDR5 slots, 6400/7200 MHz support, up to 128 GB total.
- Graphics / Display outputs: 1 x DisplayPort++ (DP++), 1 x HDMI 2.0, 1 x USB Type-C (supports DisplayPort Alt Mode), 1 x M.2 A-key (M2A-Display extension port supporting eDP/LVDS/HDMI/DVI/VGA/DP).
- Expansion slots: 1 x PCIe Gen5 x4.
- M.2 connectors: 1 x M.2 M key (NVMe), 1 x M.2 B key (cellular 4G/5G) with SIM slot, 1 x M.2 E key (WiFi/BT), 1 x M.2 A key (display / USB expansion).
- Storage: 2 x SATA 3.0 ports; NVMe support via M.2 M key.
- Networking: Up to 3 x Intel 2.5GbE LAN ports; optional internal RJ45 for EXT-OOB.
- Serial / peripheral I/O: 2 x COM ports, 4 x USB 3.2 Gen2 Type-A, 1 x USB Type-C (DP alt / USB3 Gen2 / PD 15W), 5 x USB 2.0 headers.
- Audio: L/R with support for 3W speaker.
- Management / OOB: EXT-OOB (Full) supported; optional CNVi and Intel vPro support where applicable.
- Other: SIM slot for cellular module support.
- Country of origin: Taiwan.
