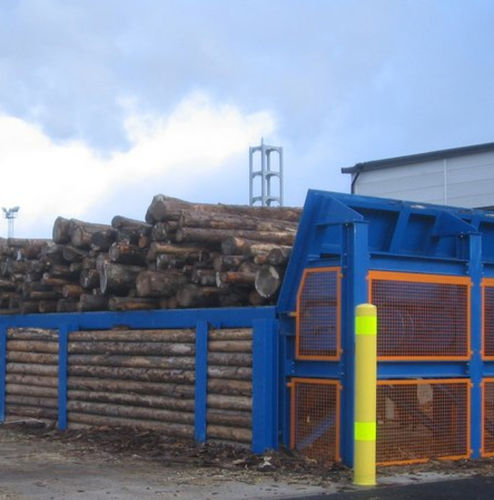

Chain conveyor

inclinedstoragefor wood

The SCC Storage Cross Chain Conveyor enables storing and conveying of round wood and slabs, loaded by crane. The conveyor is executed with a closed bottom plate, integrated side wall and driven chains. Different singularizers can be mounted downstream from the SCC: LS Log Singularizer separates logs by inclined installation and increased conveying speed. SBS Slab Bundle Singularizer is executed as a movable table beneath the SCC. The bundles can easily be opened in extended table position. The loose slabs are fed to the line by retracting the table. Application Panel boards (PB, MDF, OSB) Biomass and renewable fuels Pellets and briquette WPC/WFC Pulp and paper Customer benefits High storage volume Designed for challenging conditions and heavy-duty loads Working speed freely adjustable by frequency converter Effective dosed conveying and singularizing of round wood and slabs Solid and reliable execution, low maintenance Technical features Number of chains can be adapted to material length Welded steel chains in North American design with high breaking load Execution with right or left guiding wall available Heavy-duty chains with reinforced carriers guided in U-shaped beams with integrated wear protection Driven via shaft-mounted gear motor, incl. torque support
