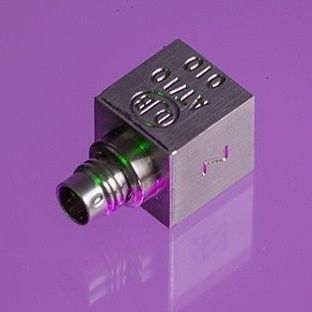

Triaxial accelerometer AT/01
piezoelectricruggedminiature

triaxial accelerometer
triaxial accelerometer
Add to favorites
Compare this product


Characteristics

Number of axes
triaxial
Technology
piezoelectric
Other characteristics
rugged, miniature, adhesive, industrial, for automotive applications, for general purposes, electric, voltage output
Frequency

Max.: 8,000 Hz

58,000 Hz

Min.: 0.7 Hz

Description

• Adhesive Mounting • Lightweight design • 3 x KONIC Shear Sensing Element for minimised cross axis. Modal Analysis of lightweight structures Automotive Aerospace Impact Testing Industrial Vibration Shaker Testing A lightweight miniature charge output triaxial vibration transducer with a single 4 pin connector, this is a unique design from DJB and comprises three charge output piezo-electric accelerometer elements mounted orthogonally within a titanium block. The use of the Konic Shear® independent sensing elements ensures a rugged and repeatable triaxial measurement under the most extreme conditions. The AT/01 uses high temperature piezoceramics as standard to ensure thermal stability. Using the industry standard ¼-28 UNF 4 pin connector for a single cable connection, the AT/01 must be used with DJB’s unique low noise 4 core cable assemblies to reduce triboelectric noise effects. All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry Cable Repair Service to make current cabling as good as new, cutting costs whilst good for the environment Specialist Cable Assembly - for all manufacturers Cable and connector stock held for a quick turnaround
