• Adhesive or bolt mounting
• Lightweight design
• KONIC Shear Sensing Element.
• Microdot Connector - 10/32 UNF Connector.
Modal Analysis of lightweight structures
Automotive
Aerospace
Machine Monitoring
Condition Monitoring
Impact Testing
Industrial
Vibration Shaker Testing
Structural Testing
Auto/Aero structural body surveys

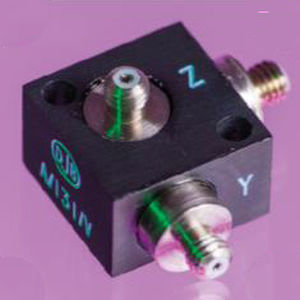

A lightweight triaxial accelerometer compromising three, Konic Shear® IEPE all welded inserts, bonded orthogonally into hard anodized aluminium housing. The inserts are electrically insulated individually and from the housing eliminating ground loop interference. Low impedance O/P provides a high degree of noise immunity and allows use with low cost coaxial cable. The additional mechanical isolation implicit in the construction provides also near elimination of strain induced error.
The d33 component suppression property of the Konic design minimises cross axis error, and is particularly advantageous for three axis measurement integrity.
The multi sensor solution also offers the benefit of being repairable. If an insert is damaged it can usually be removed and replaced saving the cost of a new accelerometer.
All DJB Accelerometers are calibrated on site prior to despatch, and are accompanied by a calibration chart with temperature and frequency responses listed. Periodic calibration can be carried out with our VC-01 Handheld Calibrator whilst we also offer a full calibration service including cross axis checks to aid accuracy of data. We are able to provide this service for all makes of accelerometer with a full report given for each device. Please contact us with an enquiry
