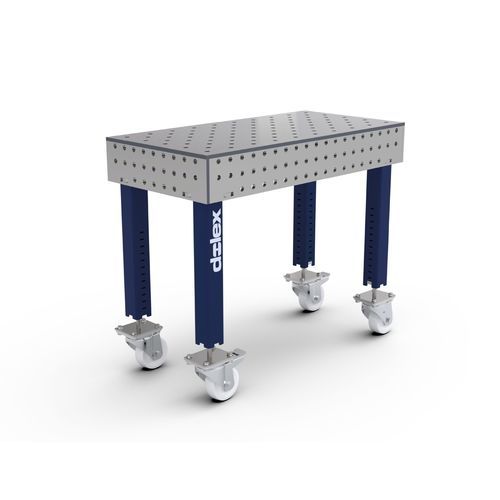

Mild steel welding table TS-TABLE series

Presentation
Welding tables with casters

Available models

• TS-TABLE-1000-R
• TS-TABLE-1500-R
• TS-TABLE-2000-R

Technical characteristics
Made of brushed S355 steel.
Brushed surface finish.
Plate thickness 12 mm and flatness 0.3 mm/m, ensuring a precise and flat work surface.
Rounded edges.
Reinforced with internal supports in S235 steel, 6 mm thick, providing strength and structural stability.
High load capacity for heavy work.
The table surface is drilled with Ø 16 mm holes spaced 100 mm in a staggered pattern, facilitating the fastening of elements or tools for various welding operations. This modular configuration allows great versatility in table use.
Can be paired with another Dolex welding table.
Ø 28 mm available on request.

Technical data (table)
Model | Length (mm) | Width (mm) | Max uniformly distributed load (kg) | Weight (kg) | Price
TS-TABLE-1000-R | 1000 | 500 | 2000 | 123,00 | 123,00
TS-TABLE-1500-R | 1500 | 1000 | 2000 | 249,00 | 249,00
TS-TABLE-2000-R | 2000 | 1000 | 2000 | 315,00 | 315,00

Technical features / specifications

• Top material: brushed S355 steel.
• Top thickness: 12 mm.
• Flatness: 0.3 mm/m.
• Rounded edges for safety and finish.
• Reinforcement: internal supports in S235 steel, 6 mm thick.
• Surface perforation: holes Ø 16 mm spaced 100 mm in staggered pattern (modular configuration).
• Ø 28 mm hole option available on request.
• Possibility to couple Dolex tables for extension/assembly.
• 3 available lengths/sizes: 1000x500 mm, 1500x1000 mm, 2000x1000 mm.
• Max uniformly distributed load: 2000 kg (depending on model).
