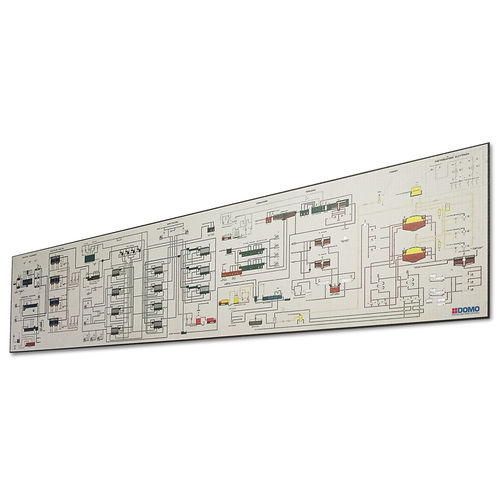

The mosaic mimic panel is a long-lasting, cost-effective, 100%-modular solution which keeps under control at a glance the whole status of any sort of plants.
It is made of small pre-printed attachable tiles representing phases, processes and flows of the plant.
The framework of signal lights and sound helps you immediately monitor the status of the connected system, whilst switches and selectors allow you to manage the operations.
Where? Everywhere.
The potential usages of mosaic mimic panels are basically countless. Anywhere there's a
flow that needs to be schematized, the mimic panel takes the stage and lets you keep
under control the whole operating status from one single workstation.
Plus, the wide range of compatible components makes the mosaic mimic panels suitable
for controlling any kind of system.
The following are just a few examples of the several fields of application.
WATER TREATMENT
Sewage treatment plants
Tank control
Dam control
ELECTRICAL PATHS
Energy production
Energy distribution
RAILWAYS
Train and subway line and exchange control
PROCESSES
Installation
Industrial processes
Religious buildings
Civic buildings (schools, hospitals, ...)
OIL, FIRE & GAS
Extraction
Distribution
PIPELINES
Monitoring
Control Rooms
Always one tile ahead.
Mosaic mimic panels are designed to be by far the most practical and efficient of all the signalling and control tools.
First of all, there is no need to switch off the plant before making graphic adjustments to the scheme or moving components from one point of the panel to another. Other control systems, instead, have to be shut down and then normalized.
