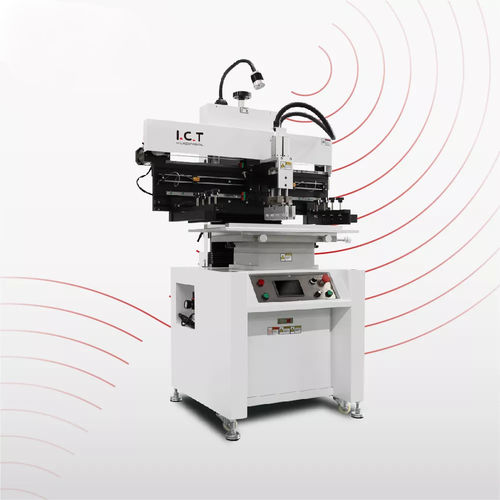

Semi-automatic stencil printer P series

solder pastePCBmodular

1. Using linear guide-ways,matching motor drive speed , ensure the printing stability and precision. 2. Blade pressure and printing speed is adjustable,precision pressure gauge, speed controller display. 3. Suspension blade system makes printing more evenly. 4. Modular universal bench, thimble random placement , easy conversion. 5. With alignment device for PCB board and frame. 6. Work with both single-sided and double-sided PCB boards. 7. Steel frame arms can be adjusted for different size ranges from 370 * 470mm to 1500 * 350mm . 8. Auto printing , stable and efficient printing quality. Platform system The pin and support block shall be suitable for different one-sided and double-sided PCB, and the pin of different sizes shall be suitable for different PCB holes. operation simple, the positioning is accurate, and the fixed position is flexible and adjustable. Drive system Imported stepper motor, Taiwan precision guide rail ensures stability, squeegee system can be lifted by manual, convenient to add solder paste and cleaning operation, limit sensor flexible adjustment to reduce transportation travel. Print system Direct connection squeegee structure.The squeegee is independently controlled by two high-precision cylinder to ensure accurate and stable pressure.The double slide positioning rails ensure the accuracy and stability of the squeegee.
