AC motor XU-5530

brusheduniversal100 V...240 V

Product overview

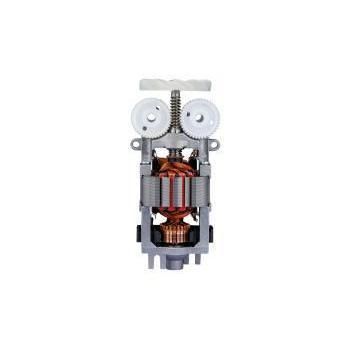

• XU-5530 is a 55 mm class high-speed AC series-wound (universal) motor from KWC Motor (Dongguan KWC Machinery Co., Ltd.), designed for kitchen appliances such as household blenders, high-speed blenders and food processors. It supports 100–240V AC input, offers multi-tap stator physical speed selection (typically 1–7 levels) and provides high starting torque with potential no-load speeds commonly in the 10,000–20,000 RPM range.

Key facts for engineering buyers

• Product category: High-Speed Universal Motors
• Motor family: Series-wound AC universal motor
• Brand / manufacturer: KWC Motor (Dongguan KWC Machinery Co., Ltd.)
• Typical applications: kitchen appliances (blenders, food processors, mixers)

Specification signals

• Diameter: 55 mm
• Supported voltage: 100–240V AC (model dependent)
• Frequency: 50/60 Hz

Customization and sourcing notes

• KWC Motor supports OEM/ODM customization: voltage, speed and torque tuning via winding design, shaft dimensions and profiles, connector/cable options, gearbox integration, control interface requirements, EMC/noise mitigation, and thermal protection. Pricing and lead times are provided after specification, quantity and customization confirmation.

Core applications & solutions

• Blenders & high-speed blenders: Suitable for household and high-speed blenders; capable of crushing ice and hard produce; multi-speed taps allow selection of RPM for different ingredients.
• Food processors & mixers: Used in hand blenders, stand mixers and food choppers; high starting torque maintains performance on viscous doughs and heavy loads.

Technical specifications (example no-load test data)
US530L-01 — 100–120V AC — 50/60 Hz — 60W – 170W (multi-level) — 1 – 7
U5530L-06 — 100–120V AC — 50/60 Hz — 45W – 130W (multi-level) — 1 – 7
U5530R-07 — 220–240V AC — 50/60 Hz — 59W – 143W (multi-level) — 1 – 7


Notes

• “No-load power” values are reference only; under load a universal motor’s power draw can increase substantially (often 300W–600W+ depending on application). Speed and torque can be adapted via winding and mechanical design. Multi-tap stator winding enables cost‑effective multi-speed control without complex electronics.

Characteristics / Technical specifications

• Model name: XU-5530
• Brand: KWC Motor (Dongguan KWC Machinery Co., Ltd.)
• Motor type: AC universal motor (series-wound, brushed)
• Diameter: 55 mm
• Supported voltage range: 100–240V AC (model dependent)
• Frequency: 50/60 Hz
• Typical no-load power (examples): 45W–170W depending on variant and tap
• Speed levels: 1–7 (multi-tap stator winding)
• Speed range: typically 10,000–20,000 RPM (potential >15,000 RPM)
• High starting torque suitable for blenders and food processors
• Customization options: voltage/speed/torque, shaft design, connectors, gearbox integration, EMC solutions, thermal protection
• Manufacturing features: automated winding, dynamic balancing; design for global compliance (CE/UL/CCC depending on final appliance)
