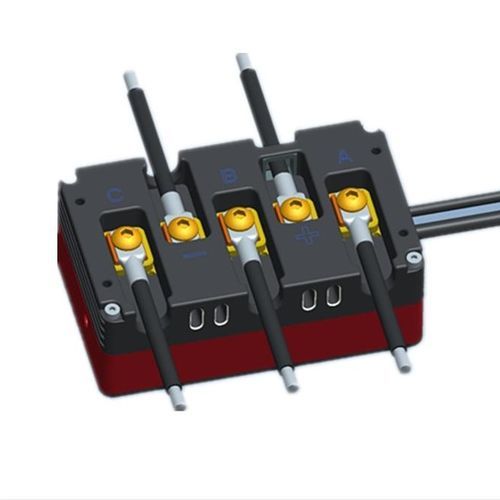

Brushless motor controller Marine ESC 150A

for synchronous motorpermanent magnetthree-phase

Hobiba Marine ESC 150A range controllers are outstanding, fully programmable controllers for "brushless“ sensorless and sensor motors (BLCD motors) for models of cars, boats, submarines, airplanes, helicopters etc. Protection Level: IP67 Max Continuous Current: 150A Max Working Current: 300A Bec: 5V/1.5A, 14V/200mA Lipo Battery Range: 30-84 VDC Signal Receivable: PPM, 1-2ms Cooling Solution: Heatsink plate & air cooling Features 1. The controllers use powerful 16 bit processors with excellent computing performance to satisfy all requirements demands. 2. The controllers offer very high powert, up to 300A / 84V (= 20 Lipol), that is up to 25kW. 3. The controllers support multi-choice of model types (airplane, car, boat, helicopter – all in one) depends only on your settings. 4. The controllers feature innovative waterproof design, to increase water&dust-proofing performance in different climates. 5. Built-in ultra-powerful switch mode BEC with an output of 5V/1.5A BEC, supporting power for receiver or master controller. 6. When connected with PC via a USB port, controllers are able to transfer both the measured (logged) values data as well as warning and error notifications into the PC in real time.Also Firmware upgradeable online. 7. Multi-Cooling solutions available: Aluminum heat sinks, Water-cooling and Fan-cooling. 8. Multiple protection functions: Stall Protect, Over Current/Voltage/Temperature, Remote Control Signal Loss Protection, and Battery Low Voltage Protection. 9. Multiple Motor Timing Angle selections, support most of the brushless dc motors (both sensored and sensorless) on market.
