BLDC motor D85L134-WP

DC120V16 V

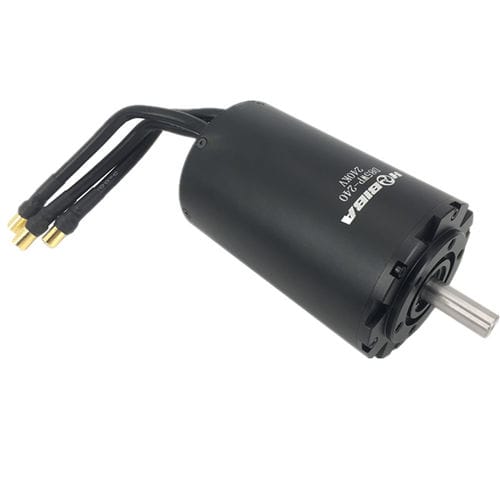

D85L134 Waterproof Brushless Motor 12kw D85L134 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. Protection Level: IP68 Electric Motor Diameters at 85mm Configuration: 12N10P Speeds up to 12,348 rpm Maximum output power up to 12KW Maximum Torque output up to 22N*m Cooling Solution: Water cooling Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently under water and have been widely used for high speed underwater thruster in various water sports, like efoil, e-surfboard, eSUP, hydrofoiling, etc Key Features: Robust & durable: Outer shell in black anodizing aluminum alloy, prevent corrosion and oxidation. High performance: Our motors provide extremely high torques with a minimum of power consumption. Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient and smooth operation. High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%. Compact: High efficiency and high power density realized in a compact design. Long life: Double seal ball bearings with moisture resistant for long life. Cooling solution: water-cooling & Air-Cooling. Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion. Can be customized for Sensor or sensorless Winding Current Shaft Options Cable and Connector Kv Ratings Mounting Options Encoder or Non
