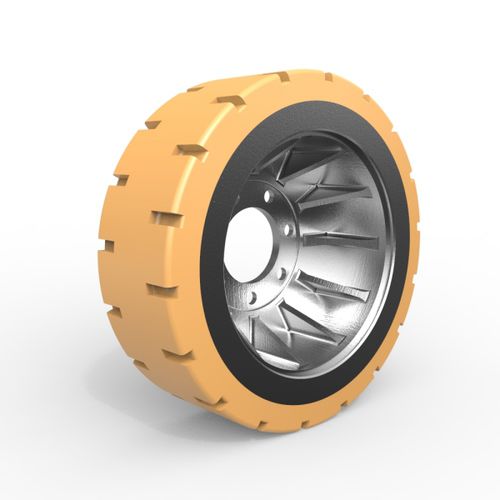

Wheel with solid tire Groovedpolyurethanefor materials handlingfor machinery
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- polyurethane
- Applications
- for materials handling, for machinery
- Other characteristics
- non-marking, low-noise, elastic, heat-resistant, high-performance, anti-static
- Load capacity
Max.: 40,000 kg
(88,185 lb)Min.: 2,500 kg
(5,512 lb)- Diameter
Max.: 1,200 mm
(47.24 in)340 mm, 350 mm, 355 mm, 400 mm
(13.39 in, 13.78 in, 13.98 in, 15.75 in)Min.: 250 mm
(9.84 in)- Tread width
Max.: 400 mm
(15.75 in)Min.: 80 mm
(3.15 in)
Description
Polyurethane grooved wheels are used as drive wheel for engineering equipments, such as load-haul-dump vehicles, shuttle cars and other engineering machiery for mining and other industry. Grooved drive wheels are made of high performance polyurethane elastomer with hardness 95 Shore A.
Advantages:
Excellent mechanical properties
Higher load-bearing capacity
Good friction and traction
Good heat resistance
Long run
Resistance to wet slip
Flame retardant and Antistatic.
Excellent braking effect
