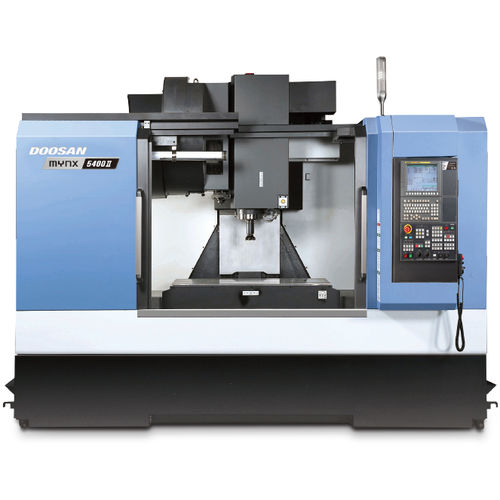

3-axis CNC machining center Mynx Ⅱ series
verticalhigh-precisionhigh-rigidity

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Other characteristics
high-precision, high-rigidity, cutting, for heavy-duty machining
X travel

1,020 mm, 1,270 mm, 1,525 mm, 2,500 mm (40 in)

Y travel

550 mm, 670 mm, 770 mm, 950 mm (22 in)

Z travel

530 mm, 625 mm, 850 mm (21 in)

Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 12,000 rpm (75,398 rad.min-1)

Power

15 kW, 15.6 kW, 18.5 kW, 22 kW, 30 kW (20.39 hp)

Description

Mid-to-large-sized Heavy Duty Machining Center Sometimes you just need heavy duty cutting, right? If that sounds like your shop, then the Mynx Series is ready to join the party. Use its variety of optional spindle speeds to find the solution that works best for your specific application. Users can be selected according to material and size of work piece Wide line-up from 550mm (21.7inch) to 950mm (37.4 inch) and various spindle are available to meet material and size of workpiece. High productivity and stable precision, powerful cutting performance High-rigidity machine structure provides high durability and stable accuracy during heavy duty cutting. Higher productivity can be achieved with the CAM-type tool changer that supports faster tool changing. Easy operation for improving convenience to use NC system Easy operation for user's convenient machine operation. The EOP functions for the user-friendliness has improved the convenience of customers. Model Specifications The suggested is a global standard specification and it may vary by country.

Catalogs

No catalogs are available for this product.

See all of Doosan Machine Tools‘s catalogs
