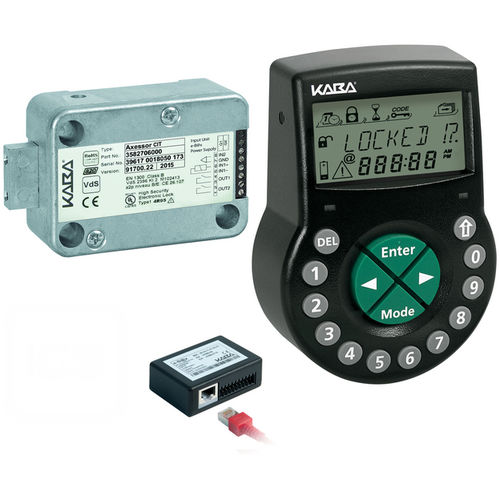

Key lock Axessor CIT

boltcombinationfor door

The One Time Combination lock Axessor CIT is characterized by its Interactive Code System (ICS). In ICS Mode the user registers at the lock with his personal ID. The ICS ensures on site presence and generates a temporary, person-related and situational specific One Time Question. Only after telephonic forwarding of this question to the dispatch centre and verification of the data, the user gets a One Time Code to open the lock from the dispatch centre. Every event is recorded to guarantee the maximum transparency. Product Details Approvals/Certificates EN 1300 B, VdS Class 2, UL Type 1, ECB●S VdS bolt switch for alarm systems class C Codes (bank mode) 1 Master 4 Managers 36 Users 1 Courier Audit > 10.000 events Power Supply 3 x 1.5 volt Alkaline batteries LR6/AA (included in delivery) Input Unit Metal housing in black Silicon key pad, green navigation keys LC display and buzzer Integrated battery compartment Lock Unit Motor bolt, 5 N moving force in both directions Adaptable bolt function: dead bolt or spring bolt (non-VdS) setting Bolt with 2xM4 threads Lock mounting set, incl. 3xM6 screws e-Box Networkmodul 5 x Outouts potential-free 5 x Inputs contact-controlled 2 x Axessor-Bus 1 x LAN 1 x external power supply Technical Details Electronic combination lock Axessor CIT Input Units Metal, black Software Activation software AS280-INSW (ICS/OTC/DM activation) Included in delivery: USB connection cable, USB dongle Programming software AS284-USBW (lock settings) Included in delivery: USB connection cable, USB dongle (1x) to configure and parametrize locks for "stand alone" applications
