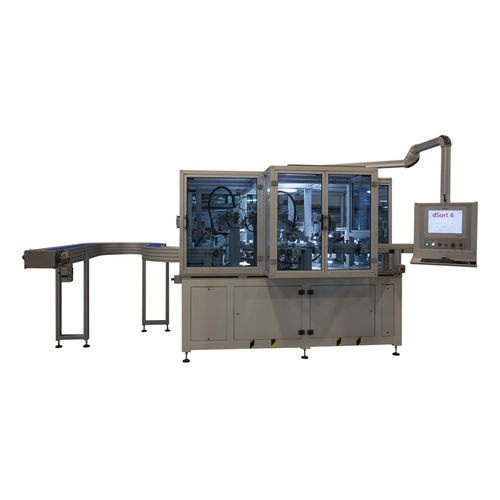

Visual inspection machine dSort 6

surfacefor oil sealsfor shaft seals

Automatic visual inspection machine for large oil seals or shaft seals. The part is loaded, manually or by an automatic system, onto the belt and then the piece is placed onto the rotating table The pick & place system places the part onto the handling system, which rotates the part. Each visual unit performs a specific inspection of the part. Rejected parts are conveyed in a bin and good parts are unloaded by a pick & place system onto a belt. • PROFILE CONTROL • CUT AND BREAK CONTROL • SURFACE CONTROL • STATISTIC AND REPORT • TRACCIABILITY OF PRODUCTION LOTS • REMOTE MANAGEMENT • M.E.S. COMPATIBLE • CUSTOMIZABLE FOR SPECIAL PROJECTS Piece Type : circular metal rubber/ rigid thermoplastic Colour : All, non-transparent Typical piece : big oil seal, shaft seal Characteristics : clean, free of dust or particles that may alter the part's profile Size : 120 mm od Cross section/height : up to 20 mm Vision Resolution : 0.019 mm/pixel Zoom : no Camera type : linear Max frame field* : 20 mm (line) Camera resolution : 2048 pixel/line
