Thickness measuring device dLab 3
surfacecameraoptical

thickness measuring device
thickness measuring device
thickness measuring device
Add to favorites
Compare this product


Characteristics

Measured value
thickness, surface
Technology
camera, optical, 2D, laser
Applications
laboratory

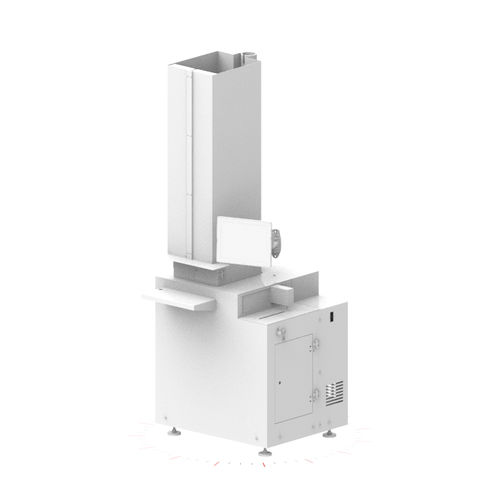

Description

Optical 2D and thickness measuring instrument for O-rings and technical parts. The instrument consists of a 2D measuring system (dimensional and surface control by a telecentric camera) and a thickness measuring system (by a laser). 2D measuring: the operator places the parts to be inspected under the camera which provides two images without distortion. The first image is processed with a dimensional tool, the second one is processed with a defect searching tool. Thickness measuring: the operator places the parts onto a moving plate through the laser station. The acquired data is transferred and available to the operator thanks to a graphical interface. Controls • DIMENSIONAL CONTROL • SURFACE CONTROL Characteristics • STATISTIC AND REPORT • TRACCIABILITY OF PRODUCTION LOTS • REMOTE MANAGEMENT • M.E.S. COMPATIBLE • CUSTOMIZABLE FOR SPECIAL PROJECTS piece Type : elastomers, rigid materials Colour : all, non-transparent Typical piece : o-ring, tech. parts Characteristics : clean, free of dust or particles that may alter the part's profile max weight : na Size : 2 mm id - 200 mm od Cross section/height : 1 - 50 mm Vision Resolution : 0.08 mm/pixel frame field : 210 mm Camera resolution : 9 mpx Performance cycle time : 1 pc/sec (camera) 24 sec (laser) repeatability : ± 0.013 mm working temperature : na accuracy : ± 0.027 mm single phase power supply : 230 v- 50 hz Max installed power : 0.5 kw electrical protection : ip 44 Average consumption : 0.02 KW
