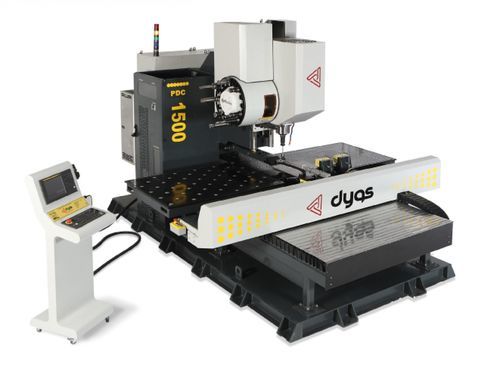

CNC drilling machine PDC

vertical3-axisfor plates

General details

• Integrated with Fanuc Oi-MFP CNC control for industrial drilling and machining cycles
• Fabricated from high-strength steel with heat-treated welded assemblies
• Sandblasted and protected painted surfaces for industrial environments
• Plates 6 mm to 80 mm thick transported on transfer balls with hydraulic clamps
• Processes: drilling, tapping, chamfering, layout marking, simultaneous milling and optional countersink bottom with high precision
• Linear guides and ball screws continuously lubricated by automatic lubrication system
• MQL cooling supplies internal and external tool cooling through the spindle
• Renishaw tool and part measurement system to reduce setup and operator errors
• Reduced exposure and extended service intervals for workbench and tools
• Optional chip conveyor and operator-friendly CAM system available
• CE certified

Technical details
MACHINE TYPE: PDC-1500 / PDC-1000
Control system: Fanuc Oi-MFP
Drilling unit: 1 vertical unit
Spindle power: 22 kW
Spindle torque: 280 Nm
Spindle speed: 10–4,000 rpm
Tool holder: BT40
Plate thickness (min / max): 6 mm / 80 mm
Max drilling capacity: Ø40 mm
Tapping capacity: M8 – M24
Axis speed X / Y: 20 m/min
Axis speed Z: 15 m/min
Automatic tool changer (ATC): 16 tools
Typical material size examples: up to 1000x1500x65 mm (other sizes available)
Material weight example (max): up to 760 kg
Machine weight examples: PDC-1500 ≈ 7,400 kg; PDC-1000 ≈ 6,600 kg
Machine dimensions example (PDC-1500): 5270x5600x2700 mm

Key specifications

• Primary model: PDC-1500 (page primary product)
• Alternative model: PDC-1000
• Fanuc Oi-MFP CNC control
• 22 kW spindle, 280 Nm, 10–4,000 rpm
• BT40 tool holder with 16-position ATC
• Plate thickness capacity: 6–80 mm
• Max drilling Ø40 mm; tapping M8–M24
• Axis speeds: X/Y 20 m/min, Z 15 m/min
• Renishaw measurement, automatic lubrication and MQL cooling

Options and compliance

• Optional chip conveyor
• Optional operator-friendly CAM system
• Optional countersink bottom processing
• CE certified for industrial use
