Swing-arm tapping machine HTM
hydraulicautomatic

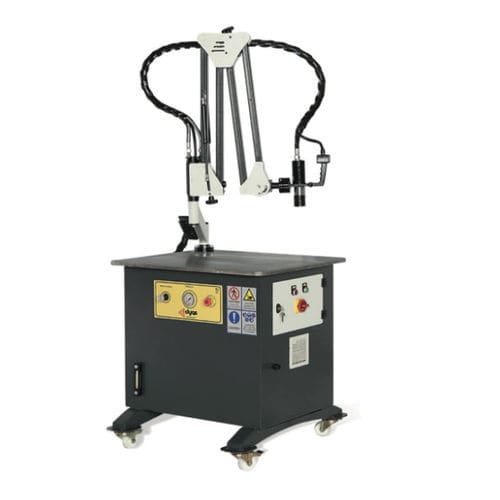

Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 2
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 3
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 4
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 5
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 6
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 7
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 8
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 9
Swing-arm tapping machine - HTM - Dyas Makina San. Tic. Ltd. Şti. - hydraulic / automatic - image - 10
Add to favorites
Compare this product

Characteristics

Type
swing-arm
Operation
hydraulic
Other characteristics
automatic
Diameter

4,000 mm
(157.48 in)

Description

Overview
  • CE certificated.
  • Hydraulic tapping machine for industrial use with 360° arm movement and a Ø4000 mm working diameter.
  • Arm structure designed to resist bending and twisting; arm mounted on hard plastic tyres for mobility.
  • Intermediate plate for quick attachment of vices and workpieces to reduce setup time.


Key features
  • Precision-machined and ground work table for accurate tapping angles.
  • 2-stage planetary gearbox to increase torque for tapping large diameters.
  • Stainless steel LED control buttons and a main safety switch.
  • Models available with specific spindle speed ranges and motor powers to match application needs.


Technical specifications
  • Series: HTM (models HTM-16, HTM-24, HTM-36, HTM-45)
  • Tapping capacity: HTM-16 M4–M16; HTM-24 M5–M24; HTM-36 M5–M36; HTM-45 M5–M45
  • Operating pressure: HTM-16/HTM-24 60 bar; HTM-36 100 bar; HTM-45 130 bar
  • Spindle speed: HTM-16/HTM-24 0–600 rpm; HTM-36/HTM-45 0–100 rpm
  • Motor power: HTM-16 2.2 kW; HTM-24 3 kW; HTM-36/HTM-45 5.5 kW
  • Voltage: 400V/50–60Hz (all models)
  • Arm working diameter: Ø4000 mm (360° rotation)
  • Machine dimensions (mm): 900 x 850 x 1100
  • Weight: HTM-16 200 kg; HTM-24 210 kg; HTM-36 265 kg; HTM-45 280 kg


Optional equipment
  • MQL lubrication system to reduce cycle time and allow use of environmentally friendlier coolants.
  • T-slot work table, precision machined and ground; two types available: continuous straight T-slots and basin-shaped T-slots.
  • Tap collets to attach taps: with or without safety slip clutch. Collets with safety slip clutch provide adjustable torque protection to reduce tap breakage.


Applications
  • Thread tapping of various workpieces in production, assembly and maintenance environments.
  • Suitable for metalworking shops, assembly lines and industrial maintenance operations.
