Electric chamfering machine CHM-S
mobileautomatic

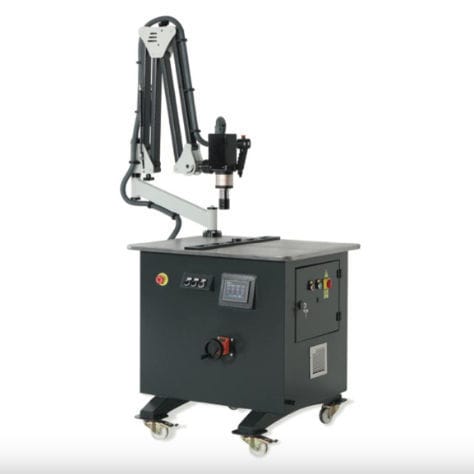

Electric chamfering machine - CHM-S - Dyas Makina San. Tic. Ltd. Şti. - mobile / automatic
Electric chamfering machine - CHM-S - Dyas Makina San. Tic. Ltd. Şti. - mobile / automatic
Electric chamfering machine - CHM-S - Dyas Makina San. Tic. Ltd. Şti. - mobile / automatic - image - 2
Add to favorites
Compare this product

Characteristics

Operation
electric
Type
mobile
Other characteristics
automatic
Rotational speed

Min.: 400 rpm
(2,513.2741 rad.min-1)

Max.: 20,000 rpm
(125,663.7061 rad.min-1)

Description

Overview
  • Portable chamfering machine with integrated tapping arm for internal and external chamfering and automatic tapping. CE certified. Guide bar for processing straight workpieces. Changeable bevel angles by inserts and adjustable torque for various materials. Automatic tapping with Pick-Mode and adjustable tapping depth. Stainless steel LED control buttons and main safety switch included.


Technical specifications
  • MODEL / MODELS: CHM | CHM-S12 | CHM-S24 | CHM-S36 | CHM-S45
  • Tapping capacity: - | M3–M12 | M3–M24 | M5–M36 | M5–M45
  • Chamfering motor speed: 400–20,000 rpm
  • Voltage: 220V / 50–60Hz
  • Arm diameter (S variants): Ø4000 mm / 360°
  • Dimensions (S variants): 900 x 850 x 1100 mm
  • Weight: - | 165 kg | 170 kg | 176 kg | 190 kg


Options & Accessories
  • Horizontal and vertical head system (optional)
  • MQL lubrication system (optional)
  • Work table (optional)
  • TCS tap collets (optional)


Applications
  • Designed for beveling and tapping of pipes, tubes, flanges and straight workpieces in metalworking, fabrication shops and maintenance departments.
