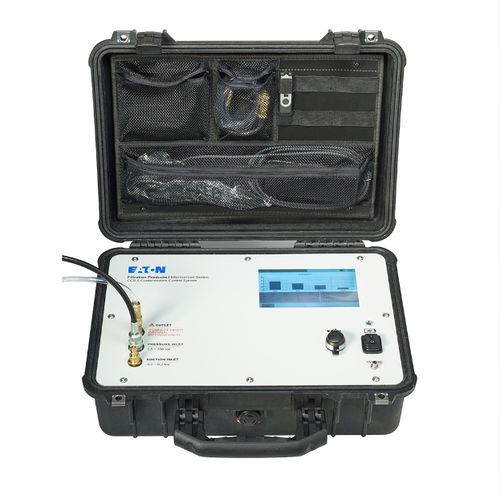

Measurement control system CCS 5

monitoringanalysistemperature

The mobile CCS 5 contamination control system determines the solid contamination particle size distribution, water saturation and fluid temperature. The measurement results provide a basis for analyzing the wear on hydraulic components, observing standards and detecting damage early. The system can be used both in pressurized operating modes and for unpressurized sampling (such as from a tank). The CCS 5 contamination control system is now optionally equipped with a new thermal printer. Featuring USB port connectivity and a portable design, operators can now conveniently print hard copies of measurement results, enhancing storage and accessibility. Core features Optical particle counting via laser sensor Precise evaluation of contamination classes according to ISO 4406:99, NAS 1638 and SAE AS 4059 Measurements are displayed as particle numbers according to contamination classes, water saturation, temperature and theoretical water content (ppm) Different automated measuring programs for single, continuous, cyclical as on-line measurements Rechargeable lithium polymer battery Internal memory for storing results (capacity up to 100,000 measurement points) Transfer of saved measured values via USB disk LabVIEW data manager software (export to Microsoft Excel) for data management on an external computer A thermal printer is optionally available
