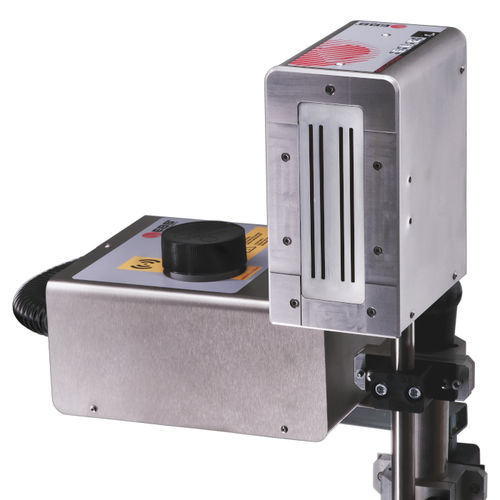

Inkjet marking machine EBS PJ-1000
for integrationdata matrixbarcode

inkjet marking machine
inkjet marking machine
inkjet marking machine
inkjet marking machine
Add to favorites
Compare this product


Characteristics

Technique
inkjet
Configuration
for integration
Applications
data matrix, barcode
Other characteristics
high-resolution

Description

With print image heights from 1 mm to 108 mm, the PJ-1000 marks your products with text, graphics and up to 24 self-generated barcode variants. The ink system is freely positionable and the print head can be mounted from the side or from above. This offers you maximum flexibility during installation. Once filled with ink, the PJ-1000 is ready to print within seconds. The high print speed of 150 metres per minute with a resolution of 360 dpi horizontal rounds off this "fast package"! Dimensions Ink unit: •  width    99 mm •  hight   188 mm •  depth  146 mm Printhead: •  width   197 mm •  hight   110 mm •  depth  146 mm Weight  >6000g (without ink) Technical data *) Number of printheads 1 Printer position during printing vertical or horizontal Head cable 1.8m in length Distance from the printhead to an object for perfect results, TJ-1000 should have the smallest possible distance to object Connections • USB • ETHERNET • OPTION PORT (photocell, shaft encoder, sensors...) Terminal no integrated terminal needed (you can use pc as terminal via ethernet) Environment • temperature: 10°C - 40°C • Humidity: 30-85 relative humidity Power supply • 90-240 V AC / 50-60Hz(1~) • Power consumption in operation: 150W • Standby power consumption: 5W Maximum resolution  • vertical:     360dpi • horizontal: 900dpi Number of texts 9 storage spaces (with maxi option 25) Graphics • Monochrome bitmap- graphics can be created i.e. with Paint or other software. Barcodes1)  EAN 8, EAN 13, EAN 128, Code 2/5, Code 2/5 check, Code 39, Code 39 check, Code 128, DUN14, GS1 Databar 2D-Codes1) Datamatrix, GS1 Datamatrix, OR-Code, PPN-Code

Catalogs
