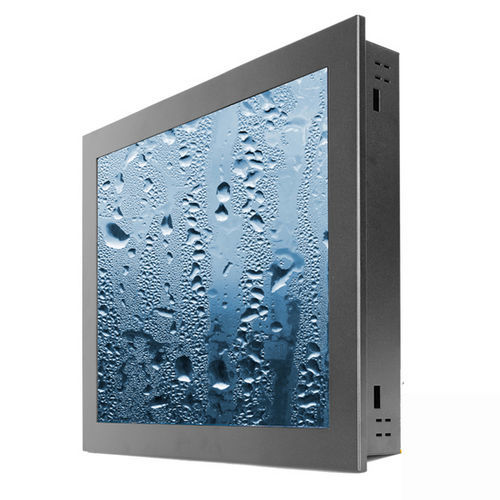

LCD monitor VI-W1561LPG projected capacitive touchscreenresistive touch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, projected capacitive touchscreen, resistive touch screen, LED backlight
- Applications
- industrial, outdoor, marine, for aerospace applications
- Display size
- 15.6"
- Resolution
- 1920 x 1080
- Mounting
- panel-mount
- Other characteristics
- HDMI, DVI port, IP65
Description
Protech front side of monitor from dust and water in harsh envrionment.
RoHS Compliance, CE (Various Model) Certified.
Accessary : RGB, DVI Cable, Apdater, Power code
Specification
Panel spec
LCD PANEL - NT156FHM-N41
Active area(mm) - 344.16 x 193.59
Pixel pitch(mm) - 0.17925 x 0.17925
Contrast ratio - 800 : 1
Brightness - 220
Viewing angle - 85 / 85 / 85 / 85
Operation temp - 0~50
Storage Temp - 0~50
Standard type
Input Power - DC 12V
Touch - -
Option
Input Power - DC 24V, AC110~220V
Frame - -
