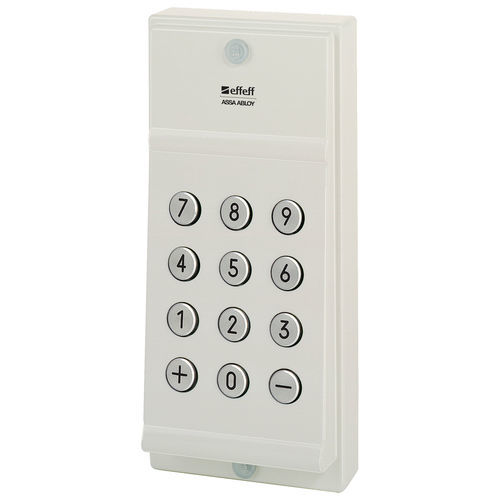

Keypad access control system 4214

This effective door code device is installed alongside the door. A compatible electric door strike is fitted into the door frame as the counterpart to the door lock. Keypad and control electronics are housed in a single casing. You can programme the access code directly via the keypad after entering a special master code. The device establishes a potential-free contact to the control of the electric strike and motorised lock. It also has a connection for a door contact. Overview of Advantages Controls 1 door 4-digit code number for 10,000 code combinations Up to 3 different user codes, 1 main code Short-term or permanent unlocking via keypad Use as organisational tool for daily operations Little installation work required Technical data Rated current consumption - approx. 60 mA Supply voltage - 12 V DC Dimension - Surface mounted: 164 x 73 x 36 mm (H x W x D); flush-mounted: 194 x 180 x 104 x 92 x 35 mm (height front x height rear x width front x width rear x depth) Operating temperature range - 421-40/42: 0 °C to +40 °C; 421-41/43: -15 °C to +40 °C Class of protection - 421-40/42: IP 30; 421-41/43: IP54 Material housing - Powder-coated die-cast zinc Release time - 3 seconds Contact type - Relay contact/changeover contact potential-free Color - Grey white RAL 9002, white aluminium (RAL 9006)
