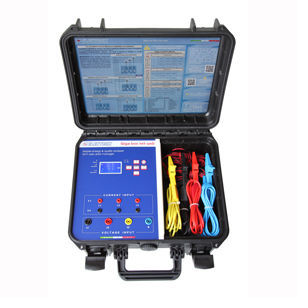

Monitoring analyzer PKAR103-00 GIGA ECT PQ BOX 85÷265V NET WEB CHARTS

for electrical networkspower qualitypower

Overview
Portable Power Quality Energy Analyzer & Web Data Manager for temporary monitoring of electrical energy, covering both energy consumption and power quality. Includes web server functions for local visualization and remote data handling.

Code
PKAR103-00

Intended use
This version is designed exclusively for use with Electrex ECT series current transformers (not included), which provide higher measurement accuracy at low current levels.

Package content

• Giga ECT PQ BOX Net Web instrument
• Energy Brain 4 7.X HK PostgreSQL software

Built-in web server features

• Log 8 + Log 8 + Log 8
• Web interface
• Charts
• Two Open Log functions

Connectivity

• Direct connection to a PC
• Ethernet network via cable
• Remote connection over the Internet using the optional Giga Box UPS Router

Compliance
Compliant with EN 50470-1 and EN 50470-3.

Documentation available

• Giga PQ Box net web product sheet (PDF on website)
• Giga ECT PQ Box net web installation manual (PDF on website)
• ECT CT datasheet (PDF on website)

Characteristics / Technical specifications

• Code: PKAR103-00
• Commercial name: GIGA ECT PQ BOX
• Voltage range: 85÷265V
• Product type: Portable Power Quality Energy Analyzer & Web Data Manager
• Designed for: Electrex ECT series current transformers (not included)
• Included software: Energy Brain 4 7.X HK PostgreSQL
• Web server functions: Log 8 + Log 8 + Log 8, Web, Charts, two Open Log functions
• Connectivity: direct PC, Ethernet (cable), remote via Giga Box UPS Router option
• Standards: EN 50470-1, EN 50470-3
