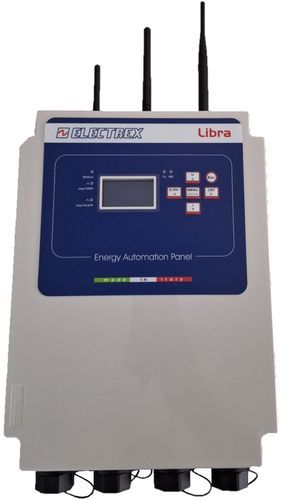

Industrial energy metering system LIBRA

processfor industrial applications

Product overview The Libra is a plug-and-play solution for monitoring and managing low-voltage electrical loads, performing power quality analysis, measuring DC current from renewable generation systems, and monitoring environmental, process and indoor air quality parameters.

Configuration and installation Each Libra system is custom-configured according to the installation requirements. It supports up to seven measurement points and enables fast, simple, non-invasive installation on existing electrical systems.

Integration and communication The Libra system can be integrated into an existing Electrex monitoring network or used as the central controller and starting point for more advanced supervision systems. It can communicate with additional Electrex devices via RS485 subnetwork and/or Ethernet, providing a scalable platform for comprehensive energy monitoring and automation.

Package contents Includes a 2 m power supply cable.

Technical specifications

• Model name: Libra
• Primary functions: monitoring and management of low-voltage electrical loads; power quality analysis; DC current measurement from renewable generation systems; environmental, process and indoor air quality monitoring
• Measurement points: up to 7
• Communication interfaces: RS485 subnetwork and Ethernet
• Installation: plug-and-play; fast, simple and non-invasive on existing electrical systems
• Power supply cable: included, 2 m
• Dimensions (W × H × D): 236 × 316 × 190 mm
