air blower / single-stage / pneumatic / centrifuge
RDF series

{{requestButtons}}

Characteristics

  • Type:

    air

  • Number of stages:

    single-stage

  • Other characteristics:

    pneumatic

  • Applications:

    centrifuge, transport

  • Flow rate:

    Max.: 62 m³/min (2,190 ft³/min)

    Min.: 11 m³/min (388 ft³/min)

  • Operating pressure:

    Max.: 7,150 Pa (1.037 psi)

    Min.: 1,100 Pa (0.16 psi)

  • Nominal power:

    Max.: 11 kW (14.96 hp)

    Min.: 0.25 kW (0.34 hp)

Description

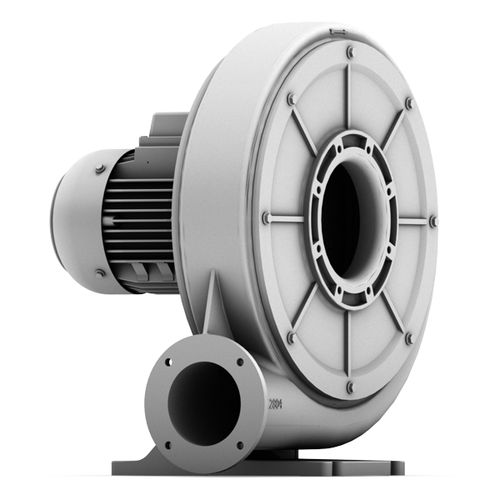

The RDF Series features a conveying blower designed for the direct conveyance of light-dry bulk solids. It is built with a cast aluminium housing, and open transport impellers manufactured from steel. Available in various models, this corrosion-proof unit operates at 64 m³/min volumetric flow with a 7,150 Pa total pressure difference.
