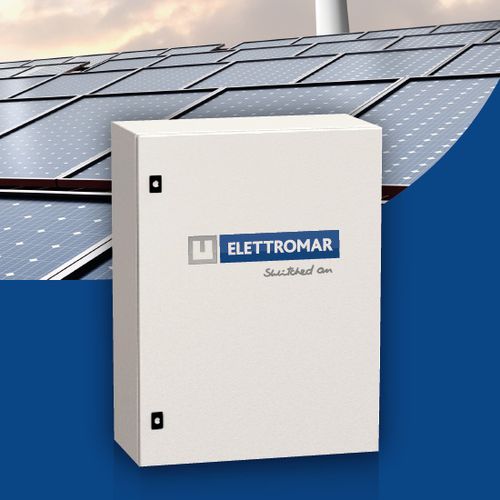

Photovoltaïc installation power plant controller CCI

The Central Plant Controller is a device that monitors plant data and communicates to the grid operator, via the IEC 61850 protocol, real-time data on the instantaneous status of the plant, as well as the capability to limit active power upon command from the DSO.

WHAT DOES THE CCI DO?

• Plant data monitoring
• Data exchange with the DSO via the IEC 61850 communication standard
• Regulation and control to ensure that the plant operates in compliance with the CEI 0-16 standard at the grid connection point (PoC)

ADVANTAGES

• Integrated UPS
• Power quality monitoring
• User LAN network surge protection device
• Data accessibility for energy monitoring
• Remote assistance via LAN - LTE modem

FUNCTIONAL PERFORMANCES

PF1 MONITORING
Plant observability and monitoring of energy consumption.
Communication to the DSO via the IEC 61850 protocol of the following data:

• active power
• reactive power
• voltage

PF2 CONTROL
Remote control of the plant:

• active power limitation
• voltage regulation at the PoC

OPTIONAL

PF3 OPTIMIZATION

• Participation in plant management optimization programs
• Participation in the ancillary services market (MSD)
