Stationary concrete batching plant Elkomix-240

continuoustwin-shaftwith belt conveyor

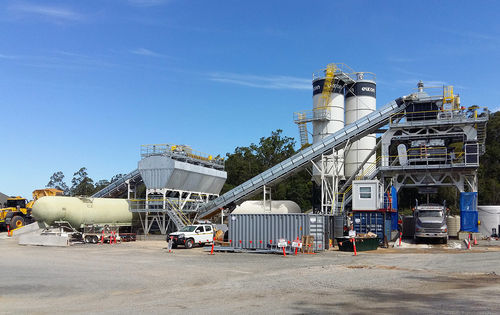

ELKOMIX-240 is a stationary concrete batching plant designed for high-capacity continuous concrete production. It is built around a large twin-shaft mixer and a modular structure to simplify transport and installation.

Key advantages

• Flexible configuration and layout options
• High production capacity and productivity
• Modular design enabling easier transport and faster installation
• Adaptable to variable and special site layouts
• Capability to produce all concrete types with different mixer options
• Ergonomic operation and straightforward maintenance across wide areas
• Easy maintenance and low operating costs

Details
ELKOMIX-240 is engineered as a stationary plant optimized for long-term use at a fixed site. The modular approach reduces transport complexity and shortens installation time compared with many conventional stationary plants. The plant includes an aggregate holding hopper that can weigh and hold materials for the next batch while the mixer is running, and ELKON's high-speed aggregate loading system can be fitted to reduce cycle time and maximize production efficiency. Aggregate storage bin configurations are flexible (3, 4, 5, 6 or more compartments) depending on requirements. The plant can also be supplied with two mixers on the same structure to double production capacity or to produce two different concrete mixes simultaneously. ELKON offers layout customization to fit site constraints and optimize space and productivity.

Characteristics / Technical specifications

• Model: ELKOMIX-240
• Manufacturer / Brand: ELKON
• Production capacity: 240 m³/h
• Mixer capacity: 9000 / 6000 l
• Mixer type: Twin-shaft
• Aggregate storage bin capacity: 4 x 30 m³ (configurable: 3, 4, 5, 6+ compartments)
• Aggregate loading type: Transfer conveyor (high-speed aggregate loading system available)
• Design: Modular stationary concrete batching plant; option for two mixers on the same structure
