Optical device alignment system E2425 - DAli 4

automatic

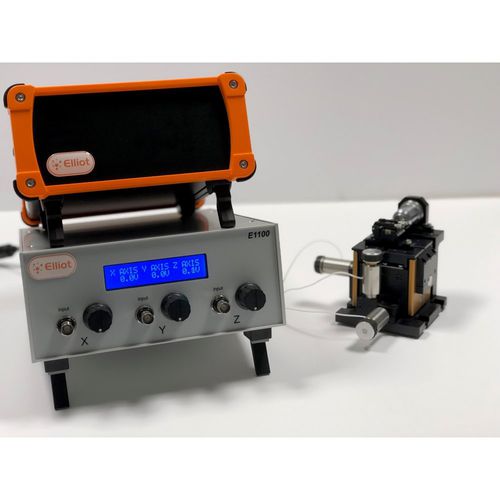

The E2425 system comprises a model E2400 2-axes automated feedback piezo controller plus MDE125 Elliot Gold™ Series XYZ flexure stage fitted with piezo actuators providing 100 µm of piezo and 2 mm of manual adjustment in each of the three axes. • 3-axes piezo controller for 150 V actuators (E1100) • Operation via software or manual controls • Superior search and optimise routine • Store parameter sets for each alignment • Full control over scan parameters • USB interface • LabVIEW™ drivers included • Clear LCD display • S/W Power meter display • Ultra-stable patented* design XYZ flexure stage • XYZ Piezo adjusters • Right Handed Configuration (Left Handed available to order) • 100 µm piezo adjustment travel • 50 nm resolution • 2 mm coarse manual travel • Orthogonal alignment grooves • 4.5 kg load capacity Please refer to the individual product sheets for a complete description of the performance specifications. E2400 DAli 4 Automatic Alignment System with USB interface. E1100 Piezo driver MDE125 Elliot Gold™ series XYZ flexure stage with 100um Piezo adjusters DAli 4 software (USB Key)
