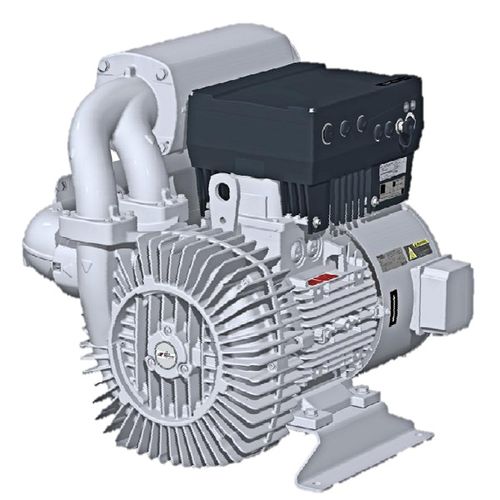

Air blower G-BH 8

side-channelsingle-stagefor vacuum

The G-BH is about half as large (installed volume) and nearly 60% lighter than a comparable standard machine with the same performance characteristics. Quiet Modern sound engineering: only half as loud (78 db(A) versus 84 db(A)) Economical Cuts costs for: shipping (low weight), packaging (smaller), electrical installation (smaller cross sections and smaller circuit protection devices), electrical energy (high efficiency and good controllability) Flexible These units are normally operated with frequency converters. The housing components can be rotated in 45° increments without manifolds and silencers or in 90° increments with manifolds and silencers. Together, both of these features offer maximum flexibility upon integration in the overall system. Regarding IE3 200 Hz motors which are used in this side channel blower do not fall under IE regulations. Technical Features Volume flow up to 950 m3/hr Differential pressure up to 680 mbar Compact design Low weight Energy-saving operation Variable speed drive 20,000 operating hours Energy-saving operation through higher efficiency Noise level reduced by half Pulsation-free Virtually maintenance-free UL/CSA approval for worldwide use 50/60 Hz voltage range motors IE3 motors
