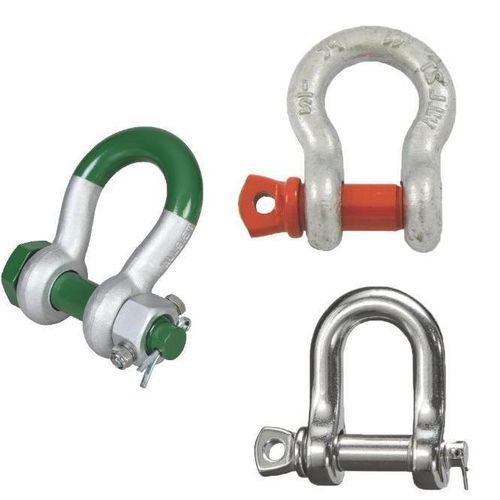

Straight lifting shackle 18 series

high resistancestainless steel

Product Overview
Shackles are essential accessories for handling and lifting operations, serving as connectors between steel cables, chains, textile slings, rings, and other equipment. The Emile Maurin range of shackles is designed to meet the needs of industrial, construction, logistics, and transportation sectors, with a maximum working load (MWL) ranging from 0.33 tons to 120 tons.

Types of Shackles

• Straight shackles: Mainly used in single-leg slings, offering a simple and direct connection.
• Lyre shackles: Better suited for multi-leg slings, their wider shape allows for multiple connections simultaneously.
• Screw-pin shackles: Ideal for temporary applications, quick and easy to install.
• Bolt-pin and pin-lock shackles: Designed for permanent installations, offering greater safety, especially when the pin may rotate during use.

Special Shackles

• Grade 80 shackles for dimensional constraints
• Wide body shackles to protect slings
• Black anti-glare shackles to avoid light reflections
• Fixed nut shackles for enhanced safety

Advantages of Emile Maurin Shackles

• Various working load limits from 0.33 to 120 tons
• Proven technical design for safety and reliability
• Robust materials: high-strength steel grades 60 and 80, stainless steel 316 grades 50 and 60

Technical Resources
Technical data sheets and guides are available for further information on safety and application.

Key Features / Technical Specifications

• Maximum working load: 0.33 to 120 tons
• Material options: High-strength steel (grades 60, 80), Stainless steel 316 (grades 50, 60)
• Types: Straight shackles, Lyre shackles, Screw-pin shackles, Bolt-pin and pin-lock shackles
• Special versions: Wide body, anti-glare, fixed nut, grade 80 for dimensional constraints
• Applications: Industrial, construction, logistics, transportation
