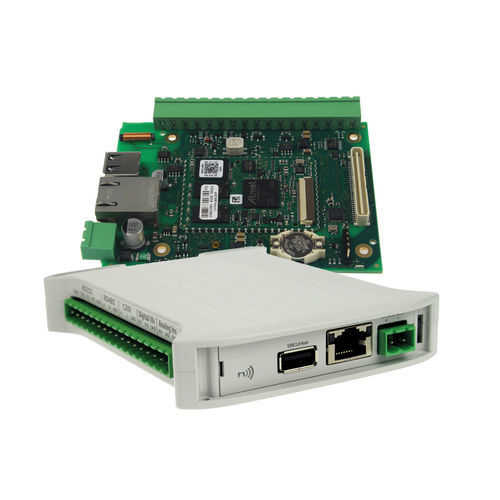

Communication gateway RockEM

IoTWLANEthernet

Optimization and analysis of operational processes Together with ROCK5, emtrion has developed an IoT gateway that allows you to extract valuable value from your data. Easily & conveniently connect the flexible RockEM IoT gateway to your production management and make your operational processes even more efficient in the future. The solution to your connectivity problems For manufacturing industry For our IoT gateway, you simply do the configuration yourself in just a few steps. No IT expert knowledge required Fully encrypted communication with the RockEM IoT gateway works to and from your machines For OEMs and machine builders White label support Individual customizations RockEM IoT gateway - features in brief 2 slots for radio modules ensure a maximum of input variants (LoRa, WLAN, Bluetooth etc.) Maximum flexibility due to connection options to all common fieldbus systems Direct control of analog inputs and digital IOs Easy operation through optimized web interface Fully encrypted communication paths Firewall protected Operating system: Linux on request: CANopen Master/ Slave; EtherNet/ IP; EtherCAT; PROFINET CCB RT1 CPU: ARM Cortex-A5, Microchip SAMA5D2 CPU Performance: 500 MHz - 785 DMIPS Security: Crypto, TRNG, tamper, on-the-fly DDR/QSPI encryption, secure boot, enviromental monitors, Trust Zone RAM: up to 512 MByte DDR3 SDRAM Flash: up to 32 MByte NOR-Flash, up to 16 GB eMMC
